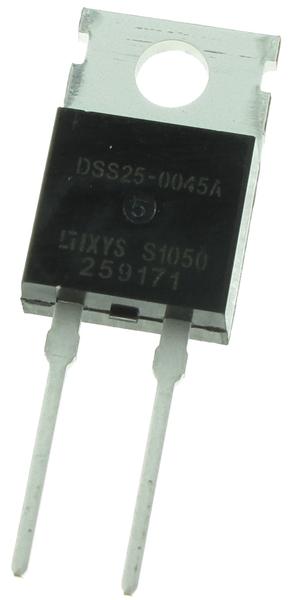

DSS25-0045A

Recovery Time :
Maximum Power Dissipation :
Mounting Style : Through Hole
Configuration : Single
Product : Schottky Diodes
Peak Reverse Voltage : 45 V
Packaging : Tube
Package / Case : TO-220AC
Forward Voltage Drop : 0.69 V
Operating Temperature Range : - 55 C to + 175 C
Maximum Reverse Leakage Current : 1000 uA
Forward Continuous Current : 25 A
Max Surge Current : 400 A


Features:

• International standard package
• Very low VF
• Extremely low switching losses
• Low I_RM-values
• Epoxy meets UL 94V-0


Application

• Rectifiers in switch mode power supplies (SMPS)
• Free wheeling diode in low voltage converters


Specifications

Symbol	Conditions
IFRMS		35	A
IFAV	TC = 155°C; rectangular, d = 0.5	25	A
IFSM	T = 45°C; tp = 10 ms (50 Hz), sine	400	A
EAS	IAS = 18 A; L = 180 µH; TVJ = 25°C; non repetitive	46	mJ
IAR	VA = 1.5`VRRM typ.; f = 10 kHz; repetitive	1.8	A
(dv/dt)cr		1000tbd	V/s
TVJ		-55...+175	°C
TVJM		175	°C
Tstg		-55...+150	°C
Ptot	TC = 25°C	135	W
Md	mounting torque	0.4...0.6	Nm
Weight	typical	2	g

Parameters:

Technical/Catalog Information	DSS25-0045A
Vendor	IXYS
Category	Discrete Semiconductor Products
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	45V
Current - Average Rectified (Io)	25A
Voltage - Forward (Vf) (Max) @ If	690mV @ 25A
Reverse Recovery Time (trr)	-
Current - Reverse Leakage @ Vr	1mA @ 45V
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Mounting Type	Through Hole, Radial
Package / Case	TO-220AC
Packaging	Tube
Capacitance @ Vr, F	-
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	DSS25 0045A DSS250045A
