Part Number: DTA114TE-TP

Category: Discrete Semiconductor Products

MFG: Micro Commercial Co (VA)





Descriptions: TRANS DGTL PNP 150MW SOT-523

Price Break

1
10
100
250
500
1000

Unit Price

.55000
.37500
.17500
.12500
.08500
.06750

Extended Price

0.55
3.75
17.50
31.25
42.50
67.50

(All prices are in USD) Prices for reference only
Urgent Purchase

DTA114TE-TP General Description

TRANS DGTL PNP 150MW SOT-523

DTA114TE-TP Parameters

Technical/Catalog InformationDTA114TE-TP
VendorMicro Commercial Co (VA)
CategoryDiscrete Semiconductor Products
Transistor TypePNP - Pre-Biased
Voltage - Collector Emitter Breakdown (Max)50V
Current - Collector (Ic) (Max)100mA
Power - Max150mW
Resistor - Base (R1) (Ohms)10K
Resistor - Emitter Base (R2) (Ohms)-
Vce Saturation (Max) @ Ib, Ic300mV @ 1mA, 10mA
Current - Collector Cutoff (Max)-
DC Current Gain (hFE) (Min) @ Ic, Vce100 @ 1mA, 5V
Frequency - Transistion250MHz
Mounting TypeSurface Mount
Package / CaseSOT-523
PackagingDigi-Reel?
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names DTA114TE TP
DTA114TETP
DTA114TE TPMSDKR ND
DTA114TETPMSDKRND
DTA114TE-TPMSDKR

DTA114TE-TP datasheet

DTA05
PDF/DataSheet Download

Find DTA114TE-TP Suppliers

  • ·DTA05B
  • SANYO [Sanyo Semicon Device]
  • 0.5A Bidirectional Thyristor
  • 80571 KB
  • DTA05B Datasheet Download
  • ·DTA05C
  • SANYO [Sanyo Semicon Device]
  • 0.5A Bidirectional Thyristor
  • 80571 KB
  • DTA05C Datasheet Download
  • ·DTA05E
  • SANYO [Sanyo Semicon Device]
  • 0.5A Bidirectional Thyristor
  • 80571 KB
  • DTA05E Datasheet Download
  • ·DTA08
  • SANYO [Sanyo Semicon Device]
  • 0.8A Bidirectional Thyristor　
  • 44346 KB
  • DTA08 Datasheet Download
  • ·DTA08E
  • SANYO [Sanyo Semicon Device]
  • 0.8A Bidirectional Thyristor　
  • 44346 KB
  • DTA08E Datasheet Download
  • ·DTA1
  • SANYO [Sanyo Semicon Device]
  • 1.0A Bidirectional Thyristor
  • 169913 KB
  • DTA1 Datasheet Download
  • ·DTA113
  •
  • Digital transistor (built in resistor)
  • 70585 KB
  • DTA113 Datasheet Download
  • ·DTA113T
  • ROHM [Rohm]
  • DIGITAL TRANSISTOR
  • 721403 KB
  • DTA113T Datasheet Download

Related Part Number

DTA114TE-TP Relative Products

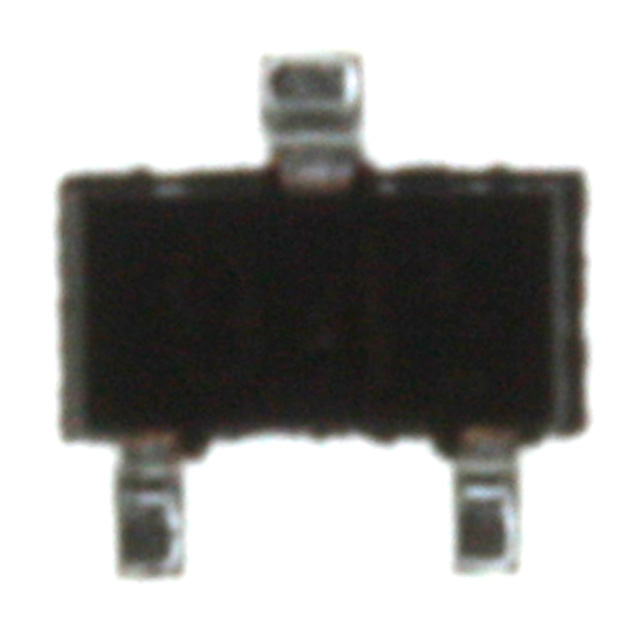

  • DTA114TETL
