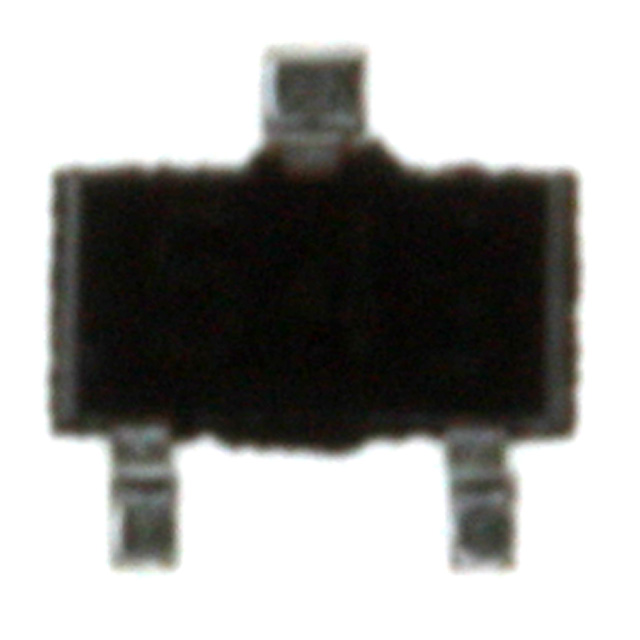

DTA114YSATP

DTA Series Datasheet download

Five Points

Part Number: DTA114YSATP

Category: Discrete Semiconductor Products

MFG: Rohm Semiconductor





Descriptions: TRANSISTOR PNP 50V 70MA SPT TB

Price Break

5000

Unit Price

.07020

Extended Price

351.00

(All prices are in USD) Prices for reference only
Urgent Purchase

DTA114YSATP General Description

TRANSISTOR PNP 50V 70MA SPT TB

DTA114YSATP Parameters

Technical/Catalog InformationDTA114YSATP
VendorRohm Semiconductor
CategoryDiscrete Semiconductor Products
Transistor TypePNP - Pre-Biased
Voltage - Collector Emitter Breakdown (Max)50V
Current - Collector (Ic) (Max)100mA
Power - Max300mW
Resistor - Base (R1) (Ohms)10K
Resistor - Emitter Base (R2) (Ohms)47K
Vce Saturation (Max) @ Ib, Ic300mV @ 250A, 5mA
Current - Collector Cutoff (Max)-
DC Current Gain (hFE) (Min) @ Ic, Vce68 @ 5mA, 5V
Frequency - Transition250MHz
Mounting TypeThrough Hole
Package / CaseSC-72-3, SPT
PackagingTape & Box (TB)
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names DTA114YSATP
DTA114YSATP
