DTA114YUAT106, US $ .05-.22 , ROHM Semiconductor, DTA114YUAT106 DataSheet download, circuit diagram from SeekIC.com

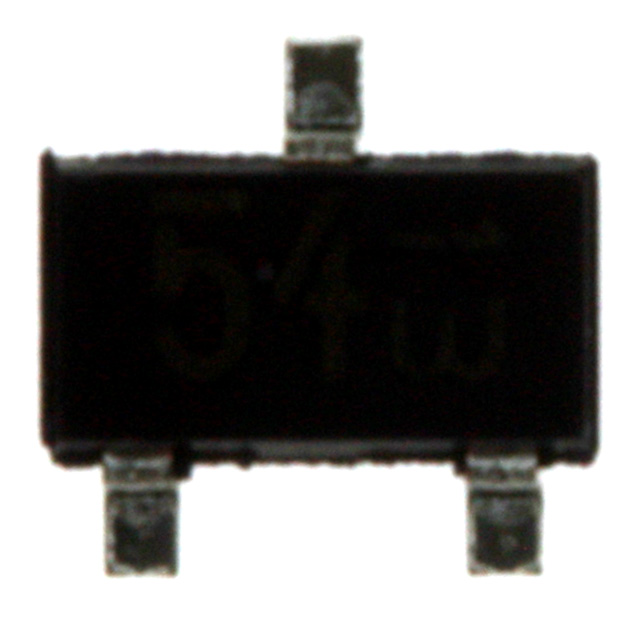

See larger image

SeekIC No. : 00222244 Detail

DTA114YUAT106: Transistors Switching (Resistor Biased) PNP 50V 70MA SOT-323

DTA114YUAT106 Data Sheet

US $ .05~.22 / Piece | Get Latest Price

Part Number:: DTA114YUAT106
Mfg:: ROHM Semiconductor
Supply Ability:: 5000

Price Break

Qty
0~1
1~25
25~100
100~500

Unit Price
$.22
$.13
$.09
$.05

Processing time
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/4/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

DTA1 evaluate
Features: • Low AC power control use.• Peak OFF-state voltage : 200 to 400V• RMS...
DTA113TKAT146 evaluate
US $.03 - .12 / Piece

Transistors Switching (Resistor Biased) PNP 50V 100MA
DTA113ZETL evaluate
US $.07 - .26 / Piece

Transistors Switching (Resistor Biased) PNP 50V 100MA

Product Details

Quick Details

Configuration :	Single	Transistor Polarity :	PNP
Typical Input Resistor :	10 KOhms	Typical Resistor Ratio :	0.212
Mounting Style :	SMD/SMT	Package / Case :	SC-70
Continuous Collector Current :	- 70 mA	Peak DC Collector Current :	100 mA
Power Dissipation :	200 mW	Maximum Operating Temperature :	+ 150 C
Packaging :	Reel

Description

Maximum Operating Frequency :
Collector- Emitter Voltage VCEO Max :
Maximum Operating Temperature : + 150 C
Packaging : Reel
Mounting Style : SMD/SMT
Package / Case : SC-70
Typical Input Resistor : 10 KOhms
Power Dissipation : 200 mW
Transistor Polarity : PNP
Peak DC Collector Current : 100 mA
Configuration : Single
Typical Resistor Ratio : 0.212
Continuous Collector Current : - 70 mA

Parameters:

Technical/Catalog Information	DTA114YUAT106
Vendor	Rohm Semiconductor(VA)
Category	Discrete Semiconductor Products
Transistor Type	PNP - Pre-Biased
Voltage - Collector Emitter Breakdown (Max)	50V
Current - Collector (Ic) (Max)	100mA
Power - Max	200mW
Resistor - Base (R1) (Ohms)	10K
Resistor - Emitter Base (R2) (Ohms)	47K
Vce Saturation (Max) @ Ib, Ic	300mV @ 250A, 5mA
Current - Collector Cutoff (Max)	-
DC Current Gain (hFE) (Min) @ Ic, Vce	68 @ 5mA, 5V
Frequency - Transition	250MHz
Mounting Type	Surface Mount
Package / Case	SC-70-3, SOT-323-3
Packaging	Digi-Reel?
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	DTA114YUAT106 DTA114YUAT106 DTA114YUAT106DKR ND DTA114YUAT106DKRND DTA114YUAT106DKR
