DTA115EET1G, US $ .03-.11 , ON Semiconductor, DTA115EET1G DataSheet download, circuit diagram from SeekIC.com

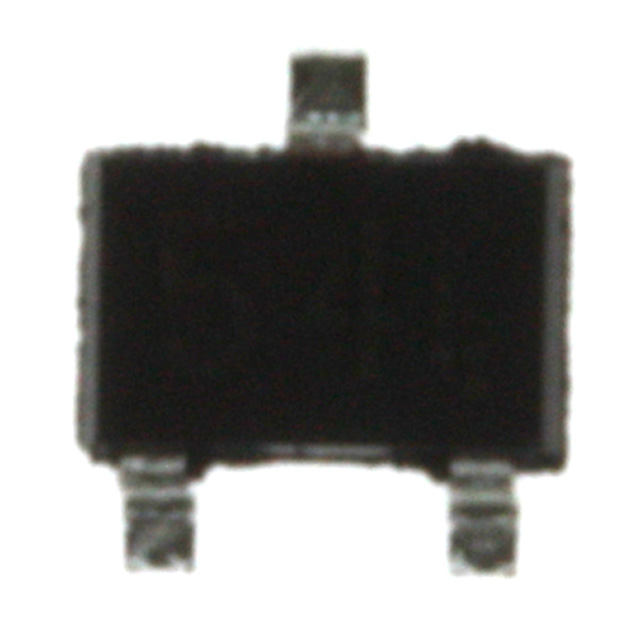

See larger image

SeekIC No. : 00221227 Detail

DTA115EET1G: Transistors Switching (Resistor Biased) 100mA 50V BRT PNP

DTA115EET1G Data Sheet

US $ .03~.11 / Piece | Get Latest Price

Part Number:: DTA115EET1G
Mfg:: ON Semiconductor
Supply Ability:: 5000

Price Break

Qty
0~1
1~25
25~100
100~500

Unit Price
$.11
$.09
$.07
$.03

Processing time
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/4/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

DTA1 evaluate
Features: • Low AC power control use.• Peak OFF-state voltage : 200 to 400V• RMS...
DTA113TKAT146 evaluate
US $.03 - .12 / Piece

Transistors Switching (Resistor Biased) PNP 50V 100MA
DTA113ZETL evaluate
US $.07 - .26 / Piece

Transistors Switching (Resistor Biased) PNP 50V 100MA

Product Details

Quick Details

Configuration :	Single	Transistor Polarity :	PNP
Typical Input Resistor :	100 KOhms	Typical Resistor Ratio :	1
Mounting Style :	SMD/SMT	Package / Case :	SC-75-3
Collector- Emitter Voltage VCEO Max :	50 V	Continuous Collector Current :	0.1 A
Peak DC Collector Current :	100 mA	Power Dissipation :	0.2 W
Maximum Operating Temperature :	+ 150 C	Packaging :	Reel

Description

Maximum Operating Frequency :
Maximum Operating Temperature : + 150 C
Packaging : Reel
Mounting Style : SMD/SMT
Collector- Emitter Voltage VCEO Max : 50 V
Transistor Polarity : PNP
Peak DC Collector Current : 100 mA
Typical Resistor Ratio : 1
Configuration : Single
Typical Input Resistor : 100 KOhms
Continuous Collector Current : 0.1 A
Power Dissipation : 0.2 W
Package / Case : SC-75-3

Parameters:

Technical/Catalog Information	DTA115EET1G
Vendor	ON Semiconductor
Category	Discrete Semiconductor Products
Transistor Type	PNP - Pre-Biased
Voltage - Collector Emitter Breakdown (Max)	50V
Current - Collector (Ic) (Max)	100mA
Power - Max	200mW
Resistor - Base (R1) (Ohms)	100K
Resistor - Emitter Base (R2) (Ohms)	100K
Vce Saturation (Max) @ Ib, Ic	250mV @ 300A, 10mA
Current - Collector Cutoff (Max)	500nA
DC Current Gain (hFE) (Min) @ Ic, Vce	35 @ 5mA, 10V
Frequency - Transition	-
Mounting Type	Surface Mount
Package / Case	SC-75-3, SOT-416, EMT3
Packaging	Tape & Reel (TR)
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	DTA115EET1G DTA115EET1G DTA115EET1GOS ND DTA115EET1GOSND DTA115EET1GOS
