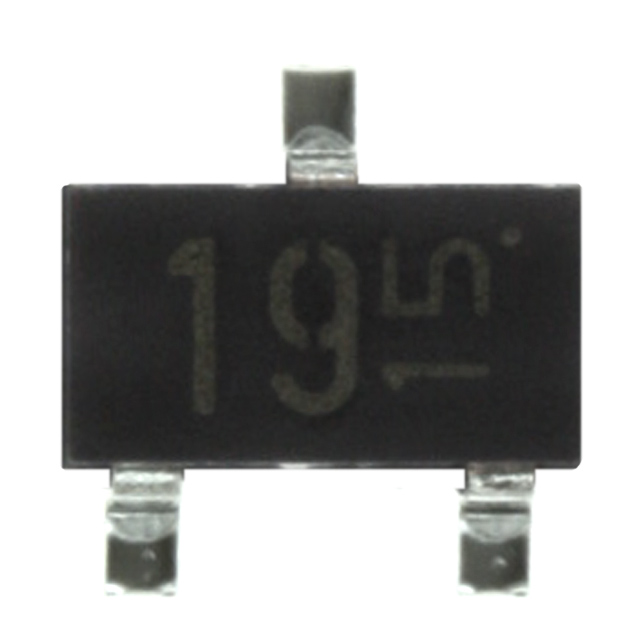

DTA115EM Product Image

DTA Series Datasheet download

Five Points

Part Number: DTA115EM



MFG: R0HM

Package Cooled: SOT-723

D/C: 05+



Urgent Purchase

DTA115EM Maximum Ratings

Parameter
Symbol
Limits
Unit
Supply voltage
VCC
−50
v
Input voltage
VI
−40 to +10
V
Output current
IO
−20
mA
IC(Max.)
−100
Power dissipation DTA115EM / DTA115EE
Pd
150
mW
DTA115EUA / DTA115EKA
200
DTA115ESA
300
Junction temperature
Tj
150
°C
Storage temperature
Tstg
?55 to +150
°C

DTA115EM Features

· Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see equivalent circuit).
·The bias resistors consist of thin-film resistors with complete isolation to allow positive biasing of the input, and parasitic effects are almost compleately eliminated.
·Only the on/off conditions need to be set for operation, making device design easy.
·Higher mounting densities can be achieved.
