DTA143EE

Maximum Operating Frequency :
Maximum Operating Temperature : + 150 C
Packaging : Reel
Mounting Style : SMD/SMT
Collector- Emitter Voltage VCEO Max : 50 V
Typical Input Resistor : 4.7 KOhms
Transistor Polarity : PNP
Peak DC Collector Current : 100 mA
Typical Resistor Ratio : 1
Configuration : Single
Continuous Collector Current : 0.1 A
Power Dissipation : 0.2 W
Package / Case : SC-75-3


Features:

Simplifies Circuit Design
Reduces Board Space
Reduces Component Count
Available in 8 mm, 7 inch/3000 Unit Tape and Reel.

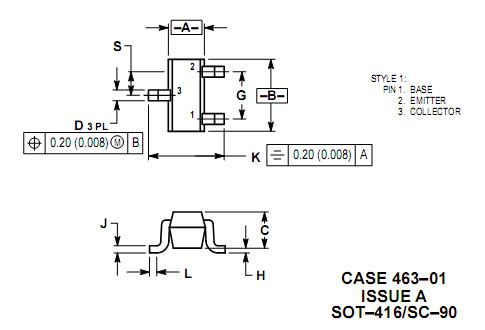

Pinout






Specifications

Rating	Symbol	Value	Unit
Output Voltage	VO	-50	Vdc
Input Voltage	VI	-30	Vdc
Output Current	IO	-100	mAdc

Description

The DTA143EE BRT (Bias Resistor Transistor) contains a single transistor with a monolithic bias network consisting of two resistors; a series base resistor and a baseemitter resistor. These digital transistors are designed to replace a single device and its external resistor bias network. The BRT eliminates these individual components by integrating them into a single device. The DTA143EE is housed in the SOT416/SC90 package which is ideal for lowpower surface mount applications where board space is at a premium.
