Purchase DTA143EKA, In-stock DTA143EKA From SeekIC.
MFG:ROHM Package Cooled:3000 D/C:0326+
- Table of contents:
DTA143EKA
-
Suppliers
DataSheet
General Description
DTA143EKA Maximum Ratings
| Parameter | symbol |
limits |
unit |
| Supply voltage | VCC | 50 | V |
| Input voltage | VIN | 30~+10 | V |
| Output current | IO | -100 | mA |
| IC(Max.) | -100 | ||
| Power dissipation | Pd | 200 | mW |
| Junction temperature | Tj | 150 | °C |
| Storage temperature | Tstg | 55~+150 | °C |
DTA143EKA Features
1) Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see equivalent circuit).
2) The bias resistors consist of thinfilm resistors with complete isolation to allow positive biasing of the input. They also have the advantage of almost completely eliminating parasitic effects.
3) Only the on/ off conditions need tobe set for operation, making device design easy.

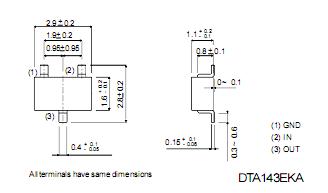

DTA143EKA Connection Diagram
DTA143EKA
PDF/DataSheet Download
- Datasheet: DTA143EKA
- File Size: 91323 KB
- Manufacturer: ROHM [Rohm]
- Click here to Download
