Purchase DTC143TM3T5G, In-stock DTC143TM3T5G From SeekIC.

MFG:ON Semiconductor  Category:Discrete Semiconductor Products

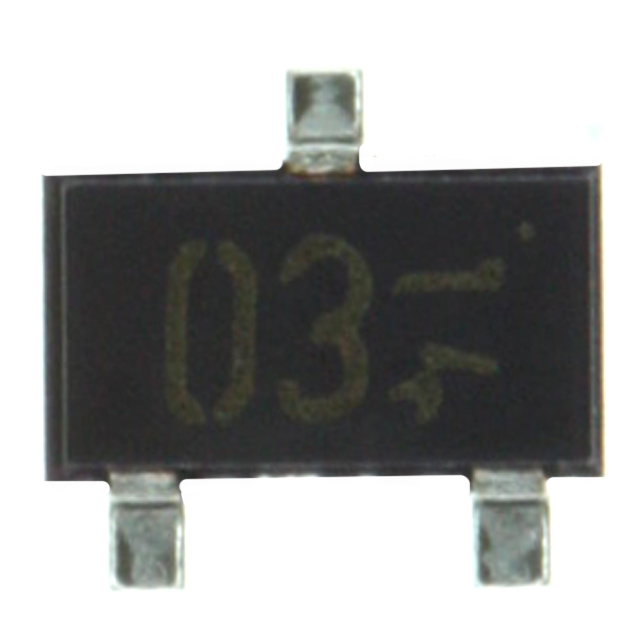

DTC143TM3T5G Product Image

DTC Series Datasheet download

Five Points

Part Number: DTC143TM3T5G

Category: Discrete Semiconductor Products

MFG: ON Semiconductor





Descriptions: TRANS NPN 50V 100MA 4.7K SOT-723

Price Break

8000
12000
24000
56000
104000

Unit Price

.07200
.06400
.06000
.05320
.05100

Extended Price

576.00
768.00
1440.00
2979.20
5304.00

(All prices are in USD) Prices for reference only
Urgent Purchase

DTC143TM3T5G General Description

TRANS NPN 50V 100MA 4.7K SOT-723

DTC143TM3T5G Parameters

Technical/Catalog InformationDTC143TM3T5G
VendorON Semiconductor
CategoryDiscrete Semiconductor Products
Transistor TypeNPN - Pre-Biased
Voltage - Collector Emitter Breakdown (Max)50V
Current - Collector (Ic) (Max)100mA
Power - Max600mW
Resistor - Base (R1) (Ohms)4.7K
Resistor - Emitter Base (R2) (Ohms)-
Vce Saturation (Max) @ Ib, Ic250mV @ 1mA, 10mA
Current - Collector Cutoff (Max)500nA
DC Current Gain (hFE) (Min) @ Ic, Vce160 @ 5mA, 10V
Frequency - Transition-
Mounting TypeSurface Mount
Package / CaseSOT-723
PackagingTape & Reel (TR)
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names DTC143TM3T5G
DTC143TM3T5G
DTC143TM3T5GOSTR ND
DTC143TM3T5GOSTRND
DTC143TM3T5GOSTR
