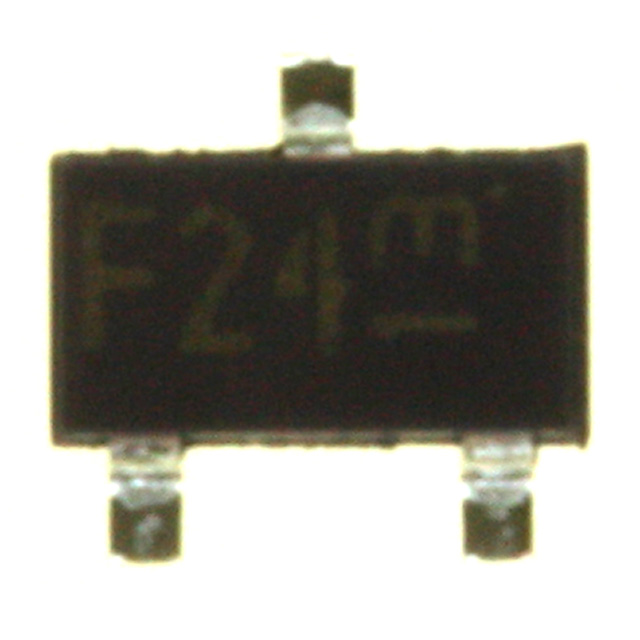

DTD122JKT146 Product Image

DTD Series Datasheet download

Five Points

Part Number: DTD122JKT146

Category: Discrete Semiconductor Products

MFG: Rohm Semiconductor





Descriptions: TRANS NPN 50V 500MA SOT-346 TR

Price Break

3000

Unit Price

.13090

Extended Price

392.70

(All prices are in USD) Prices for reference only
Urgent Purchase

DTD122JKT146 General Description

TRANS NPN 50V 500MA SOT-346 TR

DTD122JKT146 Parameters

Technical/Catalog InformationDTD122JKT146
VendorRohm Semiconductor
CategoryDiscrete Semiconductor Products
Transistor TypeNPN - Pre-Biased
Voltage - Collector Emitter Breakdown (Max)50V
Current - Collector (Ic) (Max)500mA
Power - Max200mW
Resistor - Base (R1) (Ohms)220
Resistor - Emitter Base (R2) (Ohms)4.7K
Vce Saturation (Max) @ Ib, Ic300mV @ 2.5mA, 50mA
Current - Collector Cutoff (Max)-
DC Current Gain (hFE) (Min) @ Ic, Vce47 @ 50mA, 5V
Frequency - Transistion200MHz
Mounting TypeSurface Mount
Package / CaseSC-59-3, SMT3, SOT-346, TO-236
PackagingTape & Reel (TR)
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names DTD122JKT146
