Purchase DTD133HK, In-stock DTD133HK From SeekIC.

MFG:ROHM  Package Cooled:SOT-23  D/C:05+

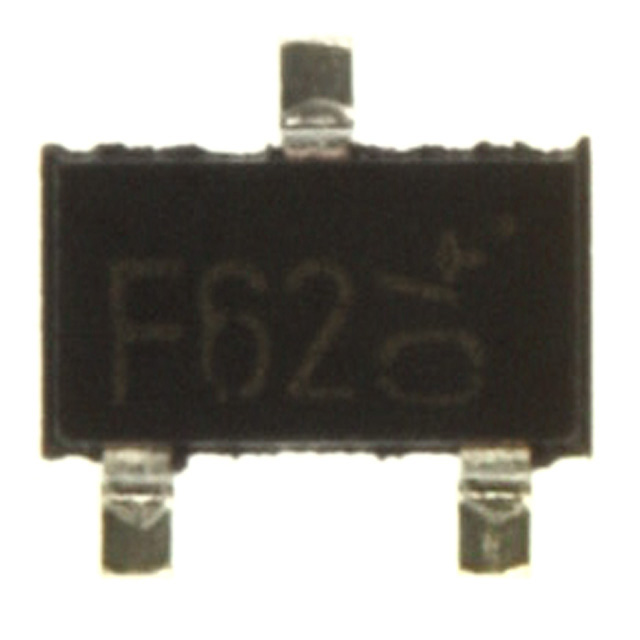

DTD133HK Product Image

DTD Series Datasheet download

Five Points

Part Number: DTD133HK



MFG: ROHM

Package Cooled: SOT-23

D/C: 05+



Urgent Purchase

DTD133HK Maximum Ratings

Parameter

Symbol

Limits

Unit

Supply voltage VCC 50 V
Input voltage VI −6 to +20 V
Output current IC 500 mA
Power
dissipation		 DTD133HK Pd 200 mW
DTD133HS 300
Junction temperature Tj 150
Storage temperature Tstg −55 to+150

DTD133HK Features

1) A built-in bias resistor allows inverter circuit configuration without external resistors for input  (see equivalent circuit diagram).
2) The bias resistor consists of a thin-film resistor which is completely isolated, providing the capability  to negative bias the input, and avoiding parasitic  effects.
3) Operation starts by simply setting On/Off conditions, simplifying the design of equipment using  the transistors.
4) High packing density.
