EA20QC09
-
Suppliers
DataSheet
General Description
EA20QC09 Maximum Ratings
| Rating | Symbol |
EA20QC09 |
Unit | |||
| Repetitive Peak Reverse Voltage | VRRM |
90 |
V | |||
| Average Rectified Output Current |
P.C.Board mounted * | IO |
1.6 |
Ta=36°C |
50Hz Full Sine Wave Resistive Load |
A |
| - |
2 |
Tc=138°C | ||||
| RMS Forward Current | IF(RMS) |
2.22 |
A | |||
| Surge Forward Current | IFSM |
20 |
50Hz Full Sine Wave,1cycle, Non-repetitive |
A | ||
| Operating JunctionTemperature Range | Tjw |
- 40 to + 150 |
°C | |||
| Storage Temperature Range | Tstg |
- 40 to + 150 |
°C | |||
EA20QC09 Features
* TO-251AA Case
* Dual Diodes Cathode Common
* Low Forward Voltage drop
* Low Power Loss
* High Surge Capability
* 40 Volts thru 100 Volts Types Available
* Dual Diodes Cathode Common
* Low Forward Voltage drop
* Low Power Loss
* High Surge Capability
* 40 Volts thru 100 Volts Types Available

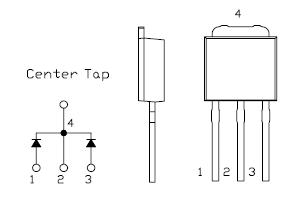

EA20QC09 Connection Diagram
EA20QC09
PDF/DataSheet Download
- Datasheet: EA20QC09
- File Size: 48157 KB
- Manufacturer: NIEC [Nihon Inter Electronics Corporation]
- Click here to Download
