Purchase EA20QS06, In-stock EA20QS06 From SeekIC.
MFG:NIHON Package Cooled:TO
- Table of contents:
EA20QS06
-
Suppliers
DataSheet
General Description
EA20QS06 Maximum Ratings
| Rating | Symbol |
EA20QS06 |
Unit | |||
| Repetitive Peak Reverse Voltage | VRRM |
60 |
V | |||
| Non-repetitive Peak Reverse Voltage | VRRM |
65 |
V | |||
| Average Rectified Output Current |
P.C.Board mounted * | IO |
1.4 |
Ta=33°C |
50Hz Half Sine Wave Resistive Load |
A |
| - |
1.7 |
Tc=135°C | ||||
| RMS Forward Current | IF(RMS) |
2.67 |
A | |||
| Surge Forward Current | IFSM |
40 |
50Hz Half Sine Wave,1cycle, Non-repetitive |
A | ||
| Operating JunctionTemperature Range | Tjw |
- 40 to + 150 |
°C | |||
| Storage Temperature Range | Tstg |
- 40 to + 150 |
°C | |||
EA20QS06 Features
* TO-251AA Case
* Low Forward Voltage drop
* Low Power Loss
* High Surge Capability
* 40 Volts thru 100 Volts Types Available
* Low Forward Voltage drop
* Low Power Loss
* High Surge Capability
* 40 Volts thru 100 Volts Types Available

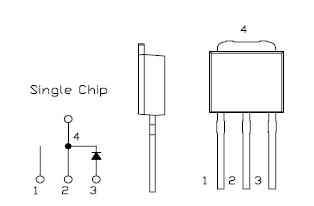

EA20QS06 Connection Diagram
EA20QS06
PDF/DataSheet Download
- Datasheet: EA20QS06
- File Size: 49021 KB
- Manufacturer: NIEC [Nihon Inter Electronics Corporation]
- Click here to Download
