Product Details

Description



Features:

* TO-252AA Case, Surface Mounting Device
* Low Forward Voltage drop
* Low Power Loss
* High Surge Capability
* 40 Volts thru 100 Volts Types Available
* Packaged in 16mm Tape and Reel

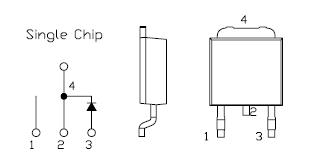

Pinout

Connection Diagram


Specifications

Rating Symbol
EA30QS04-F
Unit
Repetitive Peak Reverse Voltage VRRM
40
V
Non-repetitive Peak Reverse Voltage VRRM
45
V
Average Rectified
Output Current		 P.C.Board mounted * IO
1.8
Ta=24°C
50Hz Half Sine Wave
Resistive Load
A
-
3.0
Tc=131°C
RMS Forward Current IF(RMS)
4.71
A
Surge Forward Current IFSM
45
50Hz Half Sine Wave,1cycle,
Non-repetitive
A
Operating JunctionTemperature Range Tjw
- 40 to + 150
°C
Storage Temperature Range Tstg
- 40 to + 150
°C
