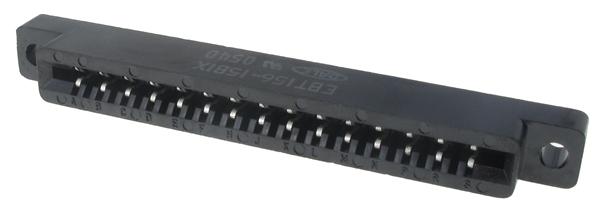

EBT156

• 156" [3.96mm] C-C.
• Modified tuning fork contacts have chamfered lead-in to reduce wear on printed circuit board contacts without sacrificing contact pressure and wiping action.
• Accepts PC board thickness of .054" to .070" [1.37mm to 1.78mm].
• Polarization on or between contact position in all sizes.Between contact polarization permits polarizing without loss of a contact position.
• Polarizing key is reinforced nylon, may be inserted by hand,requires no adhesive.
• Protected entry, provided by recessed leading edge of contact, permits the card slot to straighten and align the board before electrical contact is made. Prevents damage to contacts which might be caused by warped or out of tolerance boards.
• Optional terminal configurations, including eyelet (Type A),dip-solder (Types B, C, D, R), Wire Wrap™ (Types E, F).
• Connectors with Type A, B, C, D or R contacts are recognized under the Component Program of Underwriters Laboratories, Inc. Listed under File 65524, Project 77CH3889.
