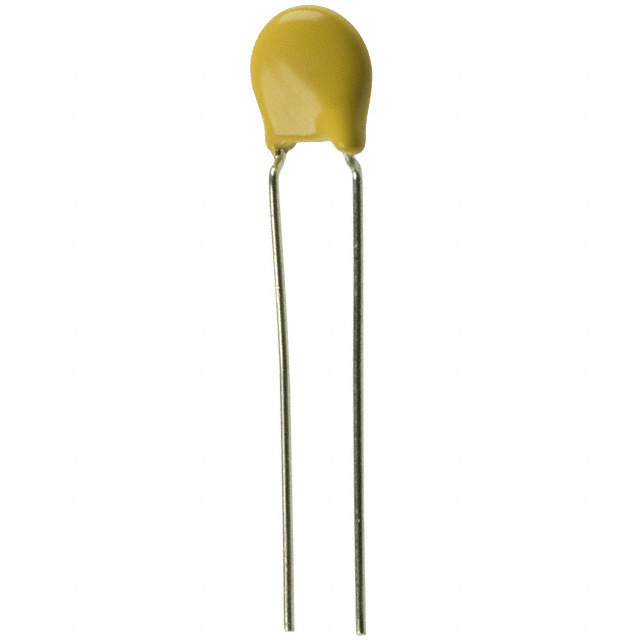

See larger image

SeekIC No. : 002944230 Detail

ECC-A3F820JGE: CAP CER 82PF 3KV 5% SL RADIAL

ECC-A3F820JGE Data Sheet

US $ .12~.35 / Piece | Get Latest Price

Part Number:: ECC-A3F820JGE
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~1
1~50
50~100
100~500

Unit Price
$.35
$.19
$.17
$.12

Processing time
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2025/12/5

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

ECC-A3A101JGE evaluate
CAP CER 100PF 1KV 5% SL RADIAL
ECC-A3A120JGE evaluate
US $.08 - .23 / Piece

CAP CER 12PF 1KV 5% SL RADIAL
ECC-A3A121JGE evaluate
CAP CER 120PF 1KV 5% SL RADIAL

Product Details

Quick Details

Series:	KGE	Manufacturer:	Panasonic Electronic Components
Capacitance:	82pF	Dimensions :	120.4 mm L
Voltage - Rated:	3000V (3kV)	Tolerance:	±5%
Temperature Coefficient:	SL/GP	Mounting Type:	Through Hole
Operating Temperature:	-25°C ~ 105°C	Applications:	General Purpose
Ratings:	-	Package / Case:	Radial - Disc
Size / Dimension:	0.354" Dia (9.00mm)	Height - Seated (Max):	0.512" (13.00mm)
Thickness:	-	Thickness (Max):	-
Lead Spacing:	0.295" (7.50mm)	Features:	High Voltage
Packaging:	Bulk

Description

Applications: General Purpose
Ratings: -
Thickness: -
Failure Rate: -
Tolerance: ±5%
Capacitance: 82pF
Manufacturer: Panasonic Electronic Components
Thickness (Max): -
Features: High Voltage
Temperature Coefficient: SL/GP
Mounting Type: Through Hole
Package / Case: Radial - Disc
Packaging: Bulk
Voltage - Rated: 3000V (3kV)
Size / Dimension: 0.354" Dia (9.00mm)
Height - Seated (Max): 0.512" (13.00mm)
Operating Temperature: -25°C ~ 105°C
Series: KGE
Lead Spacing: 0.295" (7.50mm)

Parameters:

Technical/Catalog Information	ECC-A3F820JGE
Vendor	Panasonic - ECG
Category	Capacitors
Capacitance	82pF
Voltage - Rated	3000V (3kV)
Tolerance	±5%
Package / Case	Radial - Disc
Temperature Coefficient	GP
Packaging	Bulk
Features	High Voltage
Lead Spacing	0.295" (7.50mm)
Operating Temperature	-25°C ~ 105°C
Mounting Type	Through Hole
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	ECC A3F820JGE ECCA3F820JGE P9653 ND P9653ND P9653
