ECH8606

Features: * Low ON-resistance.* Ultrahigh-speed switching.* 4V drive.PinoutSpecifications Absolute maximum ratings VDSS [V] 30 VGSS [V] 20 ID [A] 6 PD [W] 1.3 When mounted on ceramic substrate (900mm²*0.8mm) 1unit Electrical characteristics RDS(...

product image

ECH8606 Picture
See larger image
SeekIC No. : 004332784 Detail

ECH8606: Features: * Low ON-resistance.* Ultrahigh-speed switching.* 4V drive.PinoutSpecifications Absolute maximum ratings VDSS [V] 30 VGSS [V] 20 ID [A] 6 PD [W] 1.3 When moun...

ECH8606 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ECH8606
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/19

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

* Low ON-resistance.
* Ultrahigh-speed switching.
* 4V drive.




Pinout

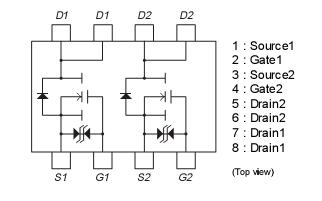

Connection Diagram




Specifications

Absolute maximum ratings
VDSS [V] 30
VGSS [V] 20
ID [A] 6
PD [W] 1.3
When mounted on ceramic substrate (900mm²*0.8mm) 1unit
Electrical characteristics
RDS(on) typ []
VGS=10V
ID [A]=2		 0.025
RDS(on) typ []
VGS=4V
ID [A]=1		 0.052
VGS(off) min [V] 1.0
VGS(off) max [V] 2.4
|yfs| typ [S] 5
Ciss typ [pF] 510
Qg typ [nC] 11
f [kHz] 750


Parameter Symbol Conditions Ratings Unit
Drain-to-Source Voltage VDSS 30 V
Gate-to-Source Voltage VGSS ±20 V
Gate-to-Source Voltage ID 6 A
Drain Current (Pulse) IDP PW10s, duty cycle1% 40 A
Allowable Power Dissipation PD Mounted on a ceramic board (900mm 5 0.8mm)1unit 1.3 W
Total Dissipation PT Mounted on a ceramic board (900mm 5 0.8mm) 1.5 W
Channel Temperature Tch 150 °C
Storage Temperature Tstg -55 to +150 °C
