SeekIC No. : 002968334 Detail

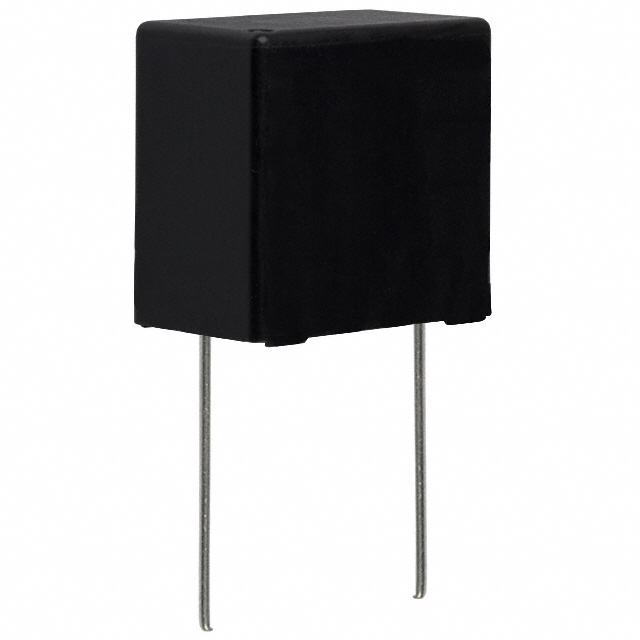

ECQ-U2A105MG: CAP FILM 1UF 275VAC RADIAL

ECQ-U2A105MG Data Sheet

Get Latest Price

Part Number:: ECQ-U2A105MG
Mfg:
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/5/4

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

ECQ-B1101JF evaluate
CAP FILM 100PF 100VDC RADIAL
ECQ-B1102JF evaluate
CAP FILM 1000PF 100VDC RADIAL
ECQ-B1103JF evaluate
CAP FILM 10000PF 100VDC RADIAL

Product Details

Quick Details

Series:	ECQ-UG	Manufacturer:	Panasonic Electronic Components
Capacitance:	1.0µF	Voltage Rating - AC:	275V
Voltage Rating - DC:	-	Dielectric Material:	Polyester, Metallized
Tolerance:	±20%	ESR (Equivalent Series Resistance):	-
Operating Temperature:	-40°C ~ 100°C	Mounting Type:	Through Hole
Package / Case:	Radial	Size / Dimension:	1.004" L x 0.610" W (25.50mm x 15.50mm)
Mounting Style :	Stud	Height - Seated (Max):	0.984" (25.00mm)
Termination:	PC Pins	Lead Spacing:	0.886" (22.50mm)
Features:	EMI Suppression	Applications:	-

Description

Manufacturer: Panasonic Electronic Components
ESR (Equivalent Series Resistance): -
Mounting Type: Through Hole
Package / Case: Radial
Termination: PC Pins
Applications: -
Dielectric Material: Polyester, Metallized
Tolerance: ±20%
Features: EMI Suppression
Capacitance: 1.0µF
Packaging: Bulk
Voltage Rating - AC: 275V
Voltage Rating - DC: -
Operating Temperature: -40°C ~ 100°C
Series: ECQ-UG
Lead Spacing: 0.886" (22.50mm)
Height - Seated (Max): 0.984" (25.00mm)
Size / Dimension: 1.004" L x 0.610" W (25.50mm x 15.50mm)

Parameters:

Technical/Catalog Information	ECQ-U2A105MG
Vendor	Panasonic - ECG
Category	Capacitors
Capacitance	1.0F
Voltage - Rated	250, 275V
Tolerance	±20%
Dielectric Material	Metallized Polyester Film
Package / Case	Radial
Packaging	Bulk
Maximum Temperature	-40°C ~ 85°C
Lead Spacing	0.886" (22.50mm)
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	-
Mounting Type	Through Hole
Features	EMI Suppression
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	ECQ U2A105MG ECQU2A105MG P10530 ND P10530ND P10530
