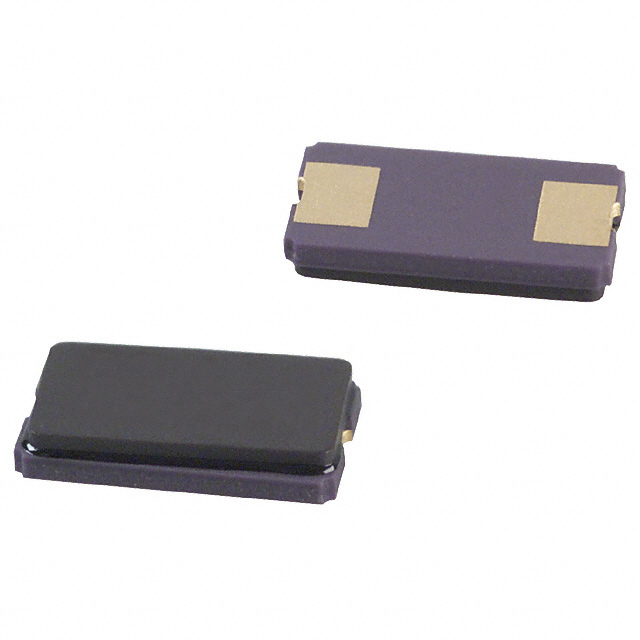

See larger image

SeekIC No. : 003411102 Detail

ECS-184-S-23A-TR: CRYSTAL 18.432MHZ SERIES SMD

ECS-184-S-23A-TR Data Sheet

US $ 1.07~2.11 / Piece | Get Latest Price

Part Number:: ECS-184-S-23A-TR
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~1
1~10
10~50
50~100
100~500

Unit Price
$2.11
$1.82
$1.6
$1.26
$1.07

Processing time
15 Days
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2025/12/4

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

ECS-.320-12.5-13 evaluate
Crystals 32 KHz 12.5pF 30ppm ECS-31-2X6
ECS-.320-12.5-13X evaluate
US $.34 - .46 / Piece

Crystals 32 KHz 12.5pF 30ppm
ECS-.327-12.5-11 evaluate
Crystals 32.768 KHz 12.5pF ECX-205

Product Details

Quick Details

Series:	ECX-64A	Manufacturer:	ECS Inc
Type:	MHz Crystal	Frequency:	18.432MHz
Frequency Stability:	±50ppm	Frequency Tolerance:	±30ppm
Load Capacitance:	Series	ESR (Equivalent Series Resistance):	60 Ohm
Operating Mode:	Fundamental	Operating Temperature:	-10°C ~ 70°C
Ratings:	-	Mounting Type:	Surface Mount
Packaging :	Reel - 7 in	Package / Case:	2-SMD
Size / Dimension:	0.236" L x 0.138" W (6.00mm x 3.50mm)	Height:	0.043" (1.10mm)

Description

Manufacturer: ECS Inc
Type: MHz Crystal
Frequency Stability: ±50ppm
Frequency Tolerance: ±30ppm
Load Capacitance: Series
Operating Mode: Fundamental
Operating Temperature: -10°C ~ 70°C
Ratings: -
Mounting Type: Surface Mount
Packaging: Cut Tape (CT)Alternate Packaging
ESR (Equivalent Series Resistance): 60 Ohm
Frequency: 18.432MHz
Package / Case: 2-SMD
Series: ECX-64A
Size / Dimension: 0.236" L x 0.138" W (6.00mm x 3.50mm)
Height: 0.043" (1.10mm)

Parameters:

Technical/Catalog Information	ECS-184-S-23A-TR
Vendor	ECS Inc. (VA)
Category	Crystals and Oscillators
Frequency	18.432MHz
Load Capacitance	Series
Package / Case	6.0mm x 3.5mm
Packaging	Digi-Reel?
Frequency Tolerance	±30ppm
Mounting Type	Surface Mount
Operating Mode	Fundamental
Operating Temperature	-10°C ~ 70°C
Type	Ceramic
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	ECS 184 S 23A TR ECS184S23ATR XC827DKR ND XC827DKRND XC827DKR
