ECS-3518-250-AN, US $ 1.15-1.15, ECS-3518-250-AN DataSheet download, circuit diagram from SeekIC.com

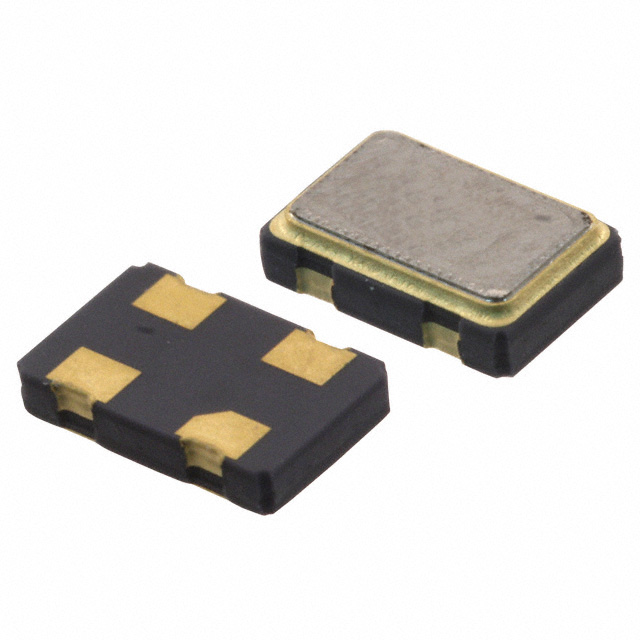

See larger image

SeekIC No. : 003415689 Detail

ECS-3518-250-AN: OSC 25.00MHZ 1.8V SMD

ECS-3518-250-AN Data Sheet

US $ 1.15~1.15 / Piece | Get Latest Price

Part Number:: ECS-3518-250-AN
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~1000

Unit Price
$1.15

Processing time
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2026/1/15

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

ECS-.320-12.5-13 evaluate
Crystals 32 KHz 12.5pF 30ppm ECS-31-2X6
ECS-.320-12.5-13X evaluate
US $.34 - .46 / Piece

Crystals 32 KHz 12.5pF 30ppm
ECS-.327-12.5-11 evaluate
Crystals 32.768 KHz 12.5pF ECX-205

Product Details

Quick Details

Series:	ECS-3518	Manufacturer:	ECS Inc
Type:	XO (Standard)	Frequency:	25MHz
Function:	Tri-State (Output Enable)	Output:	HCMOS
Voltage - Supply:	1.8V	Frequency Stability:	±100ppm
Packaging :	Tray	Operating Temperature:	-40°C ~ 85°C
Current - Supply (Max):	7mA	Ratings:	-
Mounting Type:	Surface Mount	Size / Dimension:	0.197" L x 0.126" W (5.00mm x 3.20mm)
Height:	0.051" (1.30mm)	Package / Case:	4-SMD, No Lead (DFN, LCC)

Description

Type: XO (Standard)
Function: Tri-State (Output Enable)
Operating Temperature: -40°C ~ 85°C
Ratings: -
Mounting Type: Surface Mount
Package / Case: 4-SMD, No Lead (DFN, LCC)
Current - Supply (Max): 7mA
Size / Dimension: 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height: 0.051" (1.30mm)
Manufacturer: ECS Inc
Frequency: 25MHz
Output: HCMOS
Series: ECS-3518
Voltage - Supply: 1.8V
Frequency Stability: ±100ppm
Packaging: Bulk

Parameters:

Technical/Catalog Information	ECS-3518-250-AN
Vendor	ECS Inc
Category	Crystals and Oscillators
Frequency	25MHz
Package / Case	SMD 5mm x 3.2mm
Packaging	Bulk
Supply Voltage	1.8V
Type	Standard
Operating Temperature	-40°C ~ 85°C
Frequency Stability	±100ppm
Supply Current	8mA
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	ECS 3518 250 AN ECS3518250AN
