SeekIC No. : 003412448 Detail

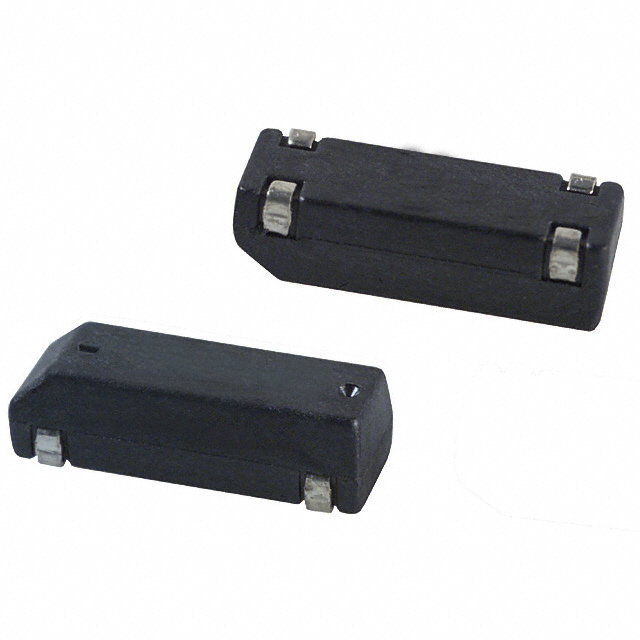

ECS-49-S-7S-TR: CRYSTAL 4.9152MHZ SERIES SMD

ECS-49-S-7S-TR Data Sheet

US $ .86~1.69 / Piece | Get Latest Price

Part Number:: ECS-49-S-7S-TR
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~1
1~10
10~50
50~100
100~500

Unit Price
$1.69
$1.46
$1.28
$1.01
$.86

Processing time
15 Days
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/5/2

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

ECS-.320-12.5-13 evaluate
Crystals 32 KHz 12.5pF 30ppm ECS-31-2X6
ECS-.320-12.5-13X evaluate
US $.34 - .46 / Piece

Crystals 32 KHz 12.5pF 30ppm
ECS-.327-12.5-11 evaluate
Crystals 32.768 KHz 12.5pF ECX-205

Product Details

Quick Details

Series:	ECX-3S	Manufacturer:	ECS Inc
Type:	MHz Crystal	Frequency:	4.9152MHz
Frequency Stability:	±50ppm	Frequency Tolerance:	±30ppm
Load Capacitance:	Series	ESR (Equivalent Series Resistance):	150 Ohm
Operating Mode:	Fundamental	Operating Temperature:	-10°C ~ 70°C
Ratings:	-	Mounting Type:	Surface Mount
Packaging :	Reel - 7 in	Package / Case:	4-SOJ, 9.40mm pitch
Size / Dimension:	0.492" L x 0.180" W (12.50mm x 4.60mm)	Height:	0.146" (3.70mm)

Description

Manufacturer: ECS Inc
Type: MHz Crystal
Frequency Stability: ±50ppm
Frequency Tolerance: ±30ppm
Load Capacitance: Series
ESR (Equivalent Series Resistance): 150 Ohm
Operating Mode: Fundamental
Operating Temperature: -10°C ~ 70°C
Ratings: -
Mounting Type: Surface Mount
Packaging: Cut Tape (CT)Alternate Packaging
Frequency: 4.9152MHz
Series: ECX-3S
Package / Case: 4-SOJ, 9.40mm pitch
Size / Dimension: 0.492" L x 0.180" W (12.50mm x 4.60mm)
Height: 0.146" (3.70mm)

Parameters:

Technical/Catalog Information	ECS-49-S-7S-TR
Vendor	ECS Inc. (VA)
Category	Crystals and Oscillators
Frequency	4.9152MHz
Load Capacitance	Series
Package / Case	12.5mm x 4.6mm
Packaging	Digi-Reel?
Frequency Tolerance	±30ppm
Mounting Type	Surface Mount
Operating Mode	Fundamental
Operating Temperature	-10°C ~ 70°C
Type	Quartz
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	ECS 49 S 7S TR ECS49S7STR XC507DKR ND XC507DKRND XC507DKR
