Description



Features:

* Low current (max. 100 mA)
* Low voltage (max. 20 V).


Application

Audio pre-amplifiers and driver stages
FM multiplex stereo decoders
Small-signal circuits in television receivers
Medium speed switching.


Pinout

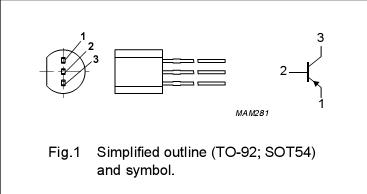

Connection Diagram




Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VCBO collector-base voltage operating ambient - -25 V
VCEO collector-emitter voltage open base - -20 V
VEBO emitter-base voltage open collector - -4 V
IC collector current (DC)   - -100 mA
ICM peak collector current   - -200 mA
IBM peak base current   - -200 mA
Ptot total power dissipation Tamb 25 °C; note 1 - 500 mW
Tstg storage temperature   -65

+150



 °C
Tj junction temperature   - 150 °C
Tamb operating ambient temperature   -65 +150 °C



Description

ED1602 PNP transistor in a TO-92; SOT54 plastic package.
NPN complement: ED1402.
