Features:

* Low current (max. 500 mA)
* Low voltage (max. 25 V)


Application

* General purpose switching and amplification.


Pinout

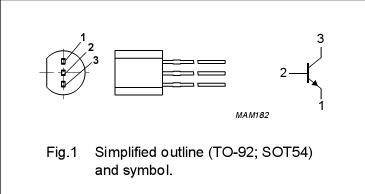

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VCBO collector-base voltage operating ambient - 30 V
VCEO collector-emitter voltage open base - 25 V
VEBO emitter-base voltage open collector - 5 V
IC collector current (DC)   - 500 mA
ICM peak collector current   - 1 A
IBM peak base current   - 200 mA
Ptot total power dissipation Tamb 25 °C; note 1 - 625 mW
Tstg storage temperature   -65

+150



 °C
Tj junction temperature   - 150 °C
Tamb operating ambient temperature   -65 +150 °C



Description

NPN transistor in a TO-92; SOT54 plastic package.

PNP complement: ED1802.
