ED3001/11-FD

TERMINAL BLOCK 5MM 11POS PCB

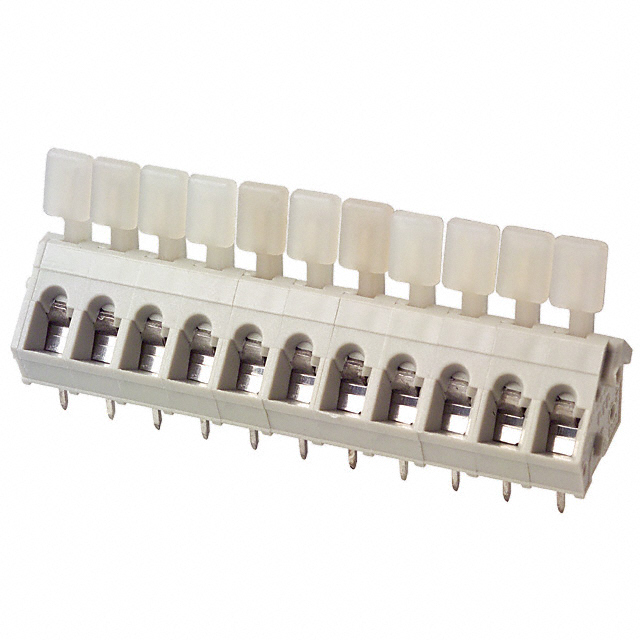

product image

ED3001/11-FD Picture
SeekIC No. : 003397201 Detail

ED3001/11-FD: TERMINAL BLOCK 5MM 11POS PCB

floor Price/Ceiling Price

US $ 1.43~2.65 / Piece | Get Latest Price
Part Number:
ED3001/11-FD
Mfg:
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~10
  • 10~25
  • 25~50
  • 50~100
  • 100~250
  • 250~500
  • 500~1000
  • 1000~2500
  • Unit Price
  • $2.65
  • $2.55
  • $2.33
  • $2.23
  • $2.12
  • $1.86
  • $1.8
  • $1.54
  • $1.43
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/28

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Series: ED3001/FD Manufacturer: On Shore Technology Inc
Number of Levels: 1 Positions Per Level: 11
Pitch: 0.197" (5.00mm) Mating Orientation: 45° (135°) Angle with Board
Current: 16A Voltage: 300V
Off-State Capacitance CO : 20 pF to 30 pF Wire Gauge: 14-28 AWG
Mounting Type: Through Hole Wire Termination: Screwless - Leg Spring, Push-In Spring
Features: Interlocking (Side), Lever Actuated Color: Gray, Slate

Description

Number of Levels: 1
Mounting Type: Through Hole
Packaging: Bulk
Pitch: 0.197" (5.00mm)
Voltage: 300V
Wire Termination: Screwless - Leg Spring, Push-In Spring
Mating Orientation: 45° (135°) Angle with Board
Current: 16A
Manufacturer: On Shore Technology Inc
Wire Gauge: 14-28 AWG
Color: Gray, Slate
Features: Interlocking (Side), Lever Actuated
Series: ED3001/FD
Positions Per Level: 11


Parameters:

Technical/Catalog InformationED3001/11-FD
VendorOn Shore Technology Inc
CategoryConnectors
ColorGray, Slate
Current 16A
Features-
Mating Orientation45° (135°) Angle with Board
Mounting TypeThrough Hole
Pitch0.197" (5.00mm)
Terminal Block TypeWire to Board
TerminationScrewless
Voltage300V
Wire Gauge 14-28 AWG
Number of Levels1
Positions Per Level11
Lead Free StatusContains Lead
RoHS StatusRoHS Non-Compliant
Other Names ED3001 11 FD
ED300111FD
ED2257 ND
ED2257ND
ED2257
