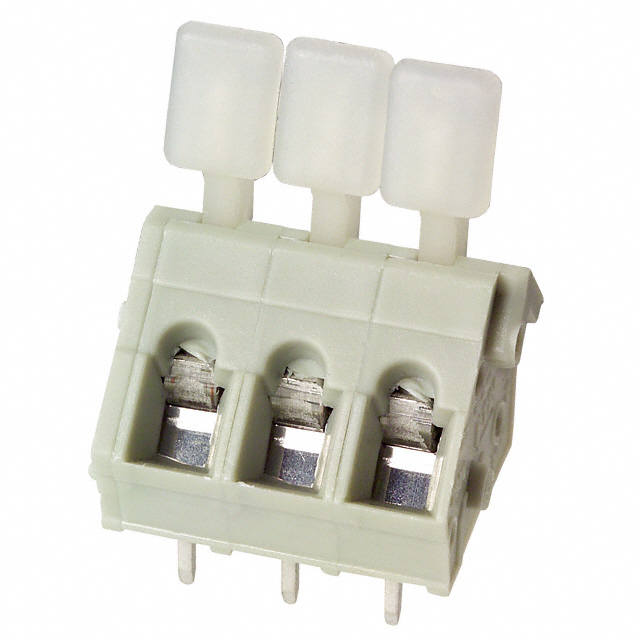

TERMINAL BLOCK 5MM 3POS PCB
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
| Series: | ED3001/FD | Manufacturer: | On Shore Technology Inc | ||
| Number of Levels: | 1 | Positions Per Level: | 3 | ||
| Pitch: | 0.197" (5.00mm) | Mating Orientation: | 45° (135°) Angle with Board | ||
| Current: | 16A | Voltage: | 300V | ||
| Off-State Capacitance CO : | 20 pF to 30 pF | Wire Gauge: | 14-28 AWG | ||
| Mounting Type: | Through Hole | Wire Termination: | Screwless - Leg Spring, Push-In Spring | ||
| Features: | Interlocking (Side), Lever Actuated | Color: | Gray, Slate |
| Technical/Catalog Information | ED3001/3-FD |
| Vendor | On Shore Technology Inc |
| Category | Connectors |
| Color | Gray, Slate |
| Current | 16A |
| Features | - |
| Mating Orientation | 45° (135°) Angle with Board |
| Mounting Type | Through Hole |
| Pitch | 0.197" (5.00mm) |
| Terminal Block Type | Wire to Board |
| Termination | Screwless |
| Voltage | 300V |
| Wire Gauge | 14-28 AWG |
| Number of Levels | 1 |
| Positions Per Level | 3 |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | ED3001 3 FD ED30013FD ED2249 ND ED2249ND ED2249 |
