ED502YS

Features: Glass Passivated Die Construction Ideally Suited for Automatic Assembly Low Profile Package High Surge Current CapabilityLow Power Loss, High EfficiencySuper-Fast Recovery Time Plastic Case Material has UL Flammability Classification Rating 94V-O PinoutSpecifications Characteristic ...

product image

ED502YS Picture
See larger image
SeekIC No. : 004333724 Detail

ED502YS: Features: Glass Passivated Die Construction Ideally Suited for Automatic Assembly Low Profile Package High Surge Current CapabilityLow Power Loss, High EfficiencySuper-Fast Recovery Time Plastic Cas...

ED502YS Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ED502YS
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Glass Passivated Die Construction
Ideally Suited for Automatic Assembly
Low Profile Package
High Surge Current Capability
Low Power Loss, High Efficiency
Super-Fast Recovery Time
Plastic Case Material has UL Flammability
Classification Rating 94V-O

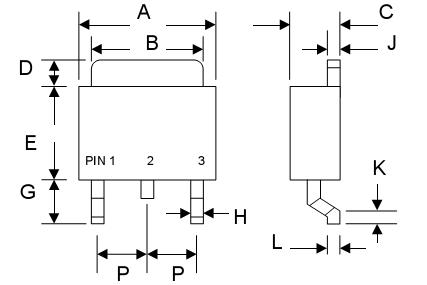

Pinout

Connection Diagram


Specifications

Characteristic Symbol ED502YS ED503YS ED504YS ED506YS Unit
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage		 VRRM
VRWM
VR		 200 300 400 600 V
RMS Reverse Voltage VR(RMS) 140 210 280 420 V
Average Rectified Output Current @TL = 75°C IO 5.0 A
Non-Repetitive Peak Forward Surge Current 8.3ms
Single half sine-wave superimposed on rated load
(JEDEC Method)		 IFSM 75 A
Forward Voltage (Note 1) @IF = 3.0A VFM 0.95 1.25 1.7 V
Peak Reverse Current @TA = 25°C
At Rated DC Blocking Voltage @TA = 100°C		 IRM 5.0
200		 A
Typical Thermal Resistance Junction to Ambient RJA 71 K/W
Reverse Recovery Time (Note 2) trr 35 nS
Operating and Storage Temperature Range Tj, TSTG -50 to +150 °C
