Product Details

Description



Features:

Glass Passivated Die Construction
Ideally Suited for Automatic Assembly
Low Profile Package
High Surge Current Capability
Low Power Loss, High Efficiency
Super-Fast Recovery Time
Plastic Case Material has UL Flammability
Classification Rating 94V-O

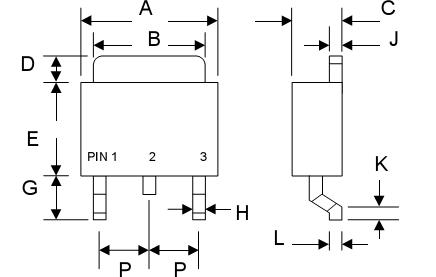

Pinout

Connection Diagram




Specifications

Characteristic Symbol ED802CS ED803CS ED804CS ED806CS Unit
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage		 VRRM
VRWM
VR		 200 300 400 600 V
RMS Reverse Voltage VR(RMS) 140 210 280 420 V
Average Rectified Output Current @TL = 75°C IO 8.0 A
Non-Repetitive Peak Forward Surge Current 8.3ms
Single half sine-wave superimposed on rated load
(JEDEC Method)		 IFSM 85 A
Forward Voltage (Note 1) @IF = 3.0A VFM 0.95 1.3 1.7 V
Peak Reverse Current @TA = 25°C
At Rated DC Blocking Voltage @TA = 100°C		 IRM 5.0
250		 A
Typical Thermal Resistance Junction to Ambient

RJA

K/W
Reverse Recovery Time (Note 2) trr 35 50 nS
Operating and Storage Temperature Range Tj, TSTG -50 to +150 °C
