Position: Home  > All Categories> Integrated Circuits (ICs) > EEG-A2A183GKE

EEG-A2A183GKE

CAP ALUM 18000UF 100V 20% SCREW

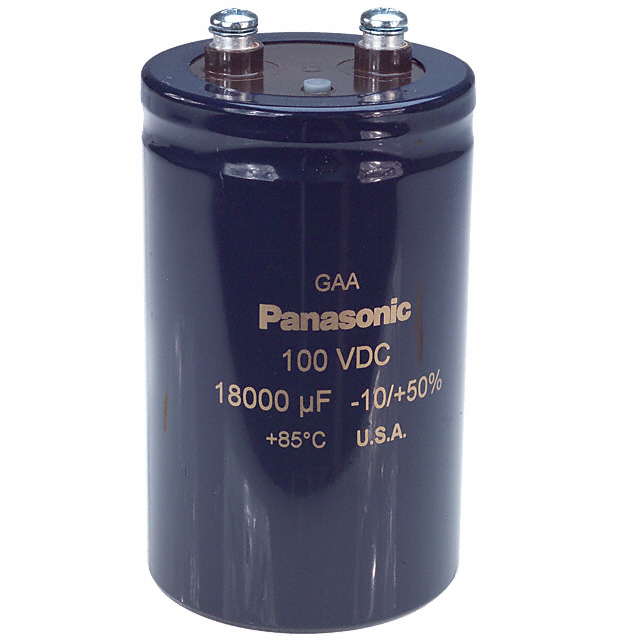

product image

EEG-A2A183GKE Picture
See larger image
SeekIC No. : 002906526 Detail

EEG-A2A183GKE: CAP ALUM 18000UF 100V 20% SCREW

EEG-A2A183GKE Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
EEG-A2A183GKE
Mfg:
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/5

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Series: AA Manufacturer: Panasonic Electronic Components
Capacitance: 18000µF Dimensions : 196 mm L x 12.5 mm W
Voltage Rating: 100V Tolerance: ±20%
Lifetime @ Temp.: 3000 Hrs @ 85°C Operating Temperature: -40°C ~ 85°C
Features: General Purpose Ripple Current: 12.85A
ESR (Equivalent Series Resistance): 16 mOhm Impedance: -
Mounting Type: Chassis Mount Package / Case: Radial, Can - Screw Terminals
Size / Dimension: 2.500" Dia (63.50mm) Height - Seated (Max): 4.125" (104.78mm)
Lead Spacing: 1.126" (28.60mm) Surface Mount Land Size: -

Description

Manufacturer: Panasonic Electronic Components
Tolerance: ±20%
Operating Temperature: -40°C ~ 85°C
Features: General Purpose
Impedance: -
Surface Mount Land Size: -
Voltage Rating: 100V
Packaging: Bulk
Lifetime @ Temp.: 3000 Hrs @ 85°C
Capacitance: 18000µF
ESR (Equivalent Series Resistance): 16 mOhm
Mounting Type: Chassis Mount
Package / Case: Radial, Can - Screw Terminals
Height - Seated (Max): 4.125" (104.78mm)
Size / Dimension: 2.500" Dia (63.50mm)
Lead Spacing: 1.126" (28.60mm)
Series: AA
Ripple Current: 12.85A


Parameters:

Technical/Catalog InformationEEG-A2A183GKE
VendorPanasonic - ECG
CategoryCapacitors
Capacitance18000F
ESR (Equivalent Series Resistance)16.0 mOhm
FeaturesComputer Grade
Lifetime @ Temp.-
Maximum Temperature-40°C ~ 85°C
Size / Dimension-
Lead Spacing1.126" (28.60mm)
Surface Mount Land Size-
Mounting TypeChassis Mount
Package / CaseScrew Terminals
PackagingBulk
Tolerance-10%, +50%
Voltage Rating100V
Lead Free StatusContains Lead
RoHS StatusRoHS Non-Compliant
Other Names EEG A2A183GKE
EEGA2A183GKE
P10087 ND
P10087ND
P10087
