EEV-FK0J471GP

CAP ALUM 470UF 6.3V 20% SMD

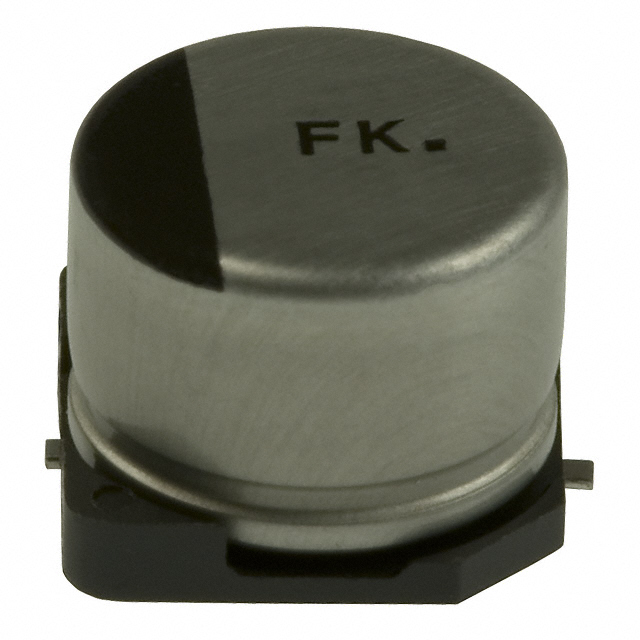

product image

EEV-FK0J471GP Picture
See larger image
SeekIC No. : 002923556 Detail

EEV-FK0J471GP: CAP ALUM 470UF 6.3V 20% SMD

EEV-FK0J471GP Data Sheet

floor Price/Ceiling Price

US $ .29~.54 / Piece | Get Latest Price
Part Number:
EEV-FK0J471GP
Mfg:
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~10
  • 10~25
  • 25~50
  • 50~100
  • 100~250
  • Unit Price
  • $.54
  • $.45
  • $.39
  • $.36
  • $.33
  • $.29
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/15

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Series: FK Manufacturer: Panasonic Electronic Components
Capacitance: 470µF Dimensions : 9.8 mm L x 4 mm W x 3 mm H
Voltage Rating: 6.3V Tolerance: ±20%
Lifetime @ Temp.: 5000 Hrs @ 105°C Operating Temperature: -55°C ~ 105°C
Features: General Purpose Ripple Current: 600mA
ESR (Equivalent Series Resistance): - Impedance: 160 mOhm
Mounting Type: Surface Mount Package / Case: Radial, Can - SMD
Size / Dimension: 0.315" Dia (8.00mm) Height - Seated (Max): 0.402" (10.20mm)
Lead Spacing: - Surface Mount Land Size: 0.327" L x 0.327" W (8.30mm x 8.30mm)

Description

Manufacturer: Panasonic Electronic Components
Tolerance: ±20%
Features: General Purpose
ESR (Equivalent Series Resistance): -
Voltage Rating: 6.3V
Capacitance: 470µF
Mounting Type: Surface Mount
Package / Case: Radial, Can - SMD
Lead Spacing: -
Packaging: Cut Tape (CT)Alternate Packaging
Operating Temperature: -55°C ~ 105°C
Lifetime @ Temp.: 5000 Hrs @ 105°C
Size / Dimension: 0.315" Dia (8.00mm)
Series: FK
Surface Mount Land Size: 0.327" L x 0.327" W (8.30mm x 8.30mm)
Height - Seated (Max): 0.402" (10.20mm)
Ripple Current: 600mA
Impedance: 160 mOhm


Parameters:

Technical/Catalog InformationEEV-FK0J471GP
VendorPanasonic - ECG (VA)
CategoryCapacitors
Capacitance470F
ESR (Equivalent Series Resistance)-
FeaturesGeneral Purpose
Lifetime @ Temp.5000 Hrs @ 105°C
Maximum Temperature-55°C ~ 105°C
Size / Dimension0.315" Dia x 0.402" H (8.00mm x 10.20mm)
Lead Spacing-
Surface Mount Land Size0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting TypeSurface Mount
Package / CaseRadial - Surface Mount
PackagingDigi-Reel?
Tolerance±20%
Voltage Rating6.3V
Lead Free StatusContains Lead
RoHS StatusRoHS Non-Compliant
Other Names EEV FK0J471GP
EEVFK0J471GP
PCE3708DKR ND
PCE3708DKRND
PCE3708DKR
