Purchase EL2120, In-stock EL2120 From SeekIC.
MFG:EL Package Cooled:DIP8 D/C:04+
- Table of contents:
EL2120
-
Suppliers
DataSheet
General Description
EL2120 Maximum Ratings
Voltage between V+ and V- . . . . . . . . . . . . . . . . . . . . .. . . . . . . . .33V
Voltage at +IN, -IN, VOUT . . . . . . . . . . ... . . (V-) - 0.5V to (V+) + 0.5V
Voltage between +IN and -IN . . . . . . . . . . . . . . . . . . . .. . . . . . . .±5V
Voltage at /Disable . . . . . . . . . . . . . . . . . . . (V+) - 10V to (V+) + 0.5V
Current into +IN, -IN, and /Disable. . . . . . . . . . . . . . . . . . . . . . ±5mA
Output Current . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . ±50mA
Internal Power Dissipation . . . . . . . . . . . . . . . . . . . .. . . . See Curves
Operating Ambient Temperature Range . . . . . . . . . . . . .0° to 75°C
Operating Junction Temperature PDIP or SO . . . . . . . .. . . . . . 150°C
Storage Temperature Range . . . . . . . . . . . . . . . . . . -65°C to +150°C
Voltage at +IN, -IN, VOUT . . . . . . . . . . ... . . (V-) - 0.5V to (V+) + 0.5V
Voltage between +IN and -IN . . . . . . . . . . . . . . . . . . . .. . . . . . . .±5V
Voltage at /Disable . . . . . . . . . . . . . . . . . . . (V+) - 10V to (V+) + 0.5V
Current into +IN, -IN, and /Disable. . . . . . . . . . . . . . . . . . . . . . ±5mA
Output Current . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . ±50mA
Internal Power Dissipation . . . . . . . . . . . . . . . . . . . .. . . . See Curves
Operating Ambient Temperature Range . . . . . . . . . . . . .0° to 75°C
Operating Junction Temperature PDIP or SO . . . . . . . .. . . . . . 150°C
Storage Temperature Range . . . . . . . . . . . . . . . . . . -65°C to +150°C
EL2120 Features
• Excellent differential gain and phase on ±5V to ±15Vsupplies
• 100MHz -3dB bandwidth from gains of ±1 to ±10
• 700V/s slew rate
• 0.1dB flatness to 20MHz
• Output disable in 50ns - remains high impedance even when driven with large slew rates
• Single +5V supply operation
• AC characteristics are lot and temperature stable
• Available in small SO-8 package
• 100MHz -3dB bandwidth from gains of ±1 to ±10
• 700V/s slew rate
• 0.1dB flatness to 20MHz
• Output disable in 50ns - remains high impedance even when driven with large slew rates
• Single +5V supply operation
• AC characteristics are lot and temperature stable
• Available in small SO-8 package
EL2120 Typical Application
• Video gain block
• Residue amplifier
• Multiplexer
• Current to voltage converter
• Coax cable driver with gain of 2
• ADC driver
• Residue amplifier
• Multiplexer
• Current to voltage converter
• Coax cable driver with gain of 2
• ADC driver

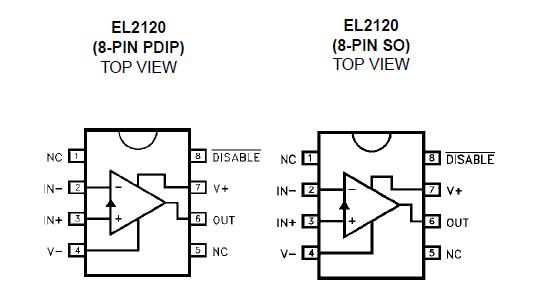

EL2120 Connection Diagram
EL2120
