EL2228

Features:

•Voltage noise of only 4.9nV/Hz
•Current noise of only 1.2pA/Hz
•Bandwidth (-3dB) of 80MHz -@ A_V = +1
•Gain-of-1 stable
•Just 4.5mA per amplifier
•8-pin MSOP package
•±2.5V to ±12V operation
•Pb-Free available (RoHS compliant)




Application

•ADSL filters
•HDSLII filters
•Ultrasound input amplifiers
•Wideband instrumentation
•Communications equipment
•Wideband sensors

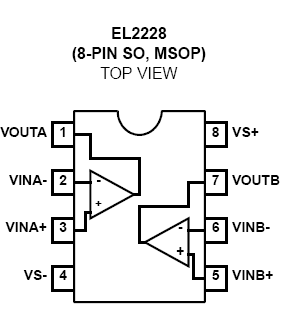

Pinout






Specifications

Supply Voltage between V_S+ and V_S-. . . . . . . . . . . . . . . . . . . .+28V
Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . V_S- - 0.3V, V_S +0.3V
Maximum Continuous Output Current. . . . . . . . . . . . . . . . . . . 40mA
ESD Voltage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2kV
Maximum Die Temperature . . . . . . . . . . . . . . . . . . . . . . . . .+150°C
Storage Temperature. . . . . . . . . . . . . . . . . . . . . -65°C to +150°C
Power Dissipation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . See Curves
Operating Temperature . . . . . . . . . . . . . . . . . . . . -40°C to +85°C




Description

The EL2228 is a dual, low-noise amplifier, ideally suited to filtering applications in ADSL and HDSLII designs. It features low noise specification of just 4.9nV/Hz and 1.2pA/Hz, making it ideal for processing low voltage waveforms. The EL2228 has a -3dB bandwidth of 80MHz and is gain-of-1 stable. It also affords minimal power dissipation with a supply current of just 4.5mA per amplifier. The amplifier can be powered from supplies ranging from 2.5V to 12V. The EL2228 is available in a space saving 8 Ld MSOP package as well as the industry-standard 8 Ld SOIC. It is specified for operation over the -40C to +85C temperature range.
