EL2480

Features:

• Quad topology
• 3mA supply current (per amplifier)
• 250MHz -3dB bandwidth
• Low cost
• Single- and dual-supply operation down to ±1.5V
• 0.05%/0.05° diff. gain/diff. phase into 150
• 1200V/s slew rate
• Large output drive current - 55mA
• Also available with disable in triple
• Pb-Free plus Anneal available (RoHS compliant)




Application

• Low power/battery applications
• HDSL amplifiers
• Video amplifiers
• Cable drivers
• RGB amplifiers
• Test equipment amplifiers
• Current to voltage converters

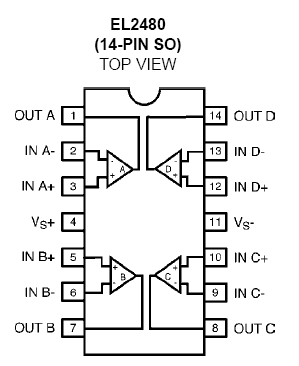

Pinout






Specifications

Supply Voltage between V_S+ and GND. . . . . . . . . . . . . . . . . +12.6V
Voltage between V_S+ and V_S- . . . . . . . . . . . . . . . . . . . . . . . +12.6V
Common-Mode Input Voltage . . . . . . . . . . . . . . . . . . . . . V_S- to V_S+
Differential Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . .. . . . .±6V
Current into +IN or -IN . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±7.5mA
Internal Power Dissipation . . . . . . . . . . . . . . . . . . . . . .See Curves
Operating Ambient Temperature Range . . . . . . . .-40°C to +85°C
Operating Junction Temperature
Plastic Packages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .150°C
Output Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±60mA
Storage Temperature Range . . . . . . . . . . . . . . . -65°C to +150°C




Description

The EL2480 is a quad current-feedback operational amplifier which achieves a -3dB bandwidth of 250MHz at a gain of +1 while consuming only 3mA of supply current per amplifier. It will operate with dual supplies ranging from 1.5V to 6V, or from single supplies ranging from +3V to +12V. In spite of its low supply current, the EL2480 can output 55mA while swinging to 4V on 5V supplies. These attributes make the EL2480 an excellent choice for low power and/or low voltage cable-driver, HDSL, or RGB applications. For triple applications with disable, consider the EL2386 (16- pin triple).
