Features:

* Triple 2:1 and 4:1 multiplexers for RGB
* Internally set gain-of-1
* High speed three-state outputs (HIZ)
* Power-down mode (ENABLE)
* Latch enable (EL4340)
* ±5V operation
* ±870 V/s slew rate
* 500MHz bandwidth
* Supply current 11mA/ch (EL4340) and 16mA/ch (EL4342)
* Pb-free plus anneal available (RoHS compliant)





Pinout

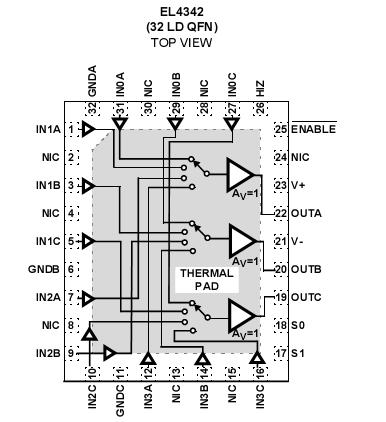

  Connection Diagram






Specifications

Supply Voltage (V+ to V-). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11V
Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . .V- -0.5V, V+ +0.5V
Supply Turn-on Slew Rate . . . . . . . . . . . . . . . . . . . . . . . . . . . .1V/s
Digital & Analog Input Current (Note 1). . . . . . . . . . . . . . . . . . .50mA
Output Current (Continuous) . . . . . . . . . . . . . . . . . . . . . . . . . .50mA
ESD Rating
Human Body Model (Per MIL-STD-883 Method 3015.7). . . ......2500V
Machine Model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .....300V
Storage Temperature Range . . . . . . . . . . . . . . . .-65°C to +150°C
Ambient Operating Temperature . . . . . . . . . . . . . .-40°C to +85°C
Operating Junction Temperature. . . . . . . . . . . . .-40°C to +125°C
Power Dissipation . . . . . . . . . . . . . . . . . . . . . . . . . . . . .See Curves





Description

The EL4340 and EL4342 are fixed unity gain mux amps featuring high slew rates and excellent bandwidth for video switching. These devices feature a high impedance output state (HIZ) that enable the outputs of multiple devices to be wired together. A power-down mode (EN) is included to turn off un-needed circuitry in power sensitive applications. The EN pin, when pulled high, sets the EL4340 and EL4342 into standby power mode - consuming just 18mW. An added feature in the EL4340 is a latch enable function (LE) that allows independent logic control using a common logic bus.
