EL5027

Features: * 2.5MHz -3dB bandwidth* Unity gain buffer* Supply voltage = 4.5V to 16.5V* Low supply current (per buffer) = 110A * High slew rate = 1.2V/s* Rail-to-rail operation* Pb-free available (RoHS compliant)Application* TFT-LCD drive circuits* Electronics notebooks* Electronics games* Personal ...

product image

EL5027 Picture
See larger image
SeekIC No. : 004335291 Detail

EL5027: Features: * 2.5MHz -3dB bandwidth* Unity gain buffer* Supply voltage = 4.5V to 16.5V* Low supply current (per buffer) = 110A * High slew rate = 1.2V/s* Rail-to-rail operation* Pb-free available (RoH...

EL5027 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
EL5027
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

* 2.5MHz -3dB bandwidth
* Unity gain buffer
* Supply voltage = 4.5V to 16.5V
* Low supply current (per buffer) = 110A
* High slew rate = 1.2V/s
* Rail-to-rail operation
* Pb-free available (RoHS compliant)




Application

* TFT-LCD drive circuits
* Electronics notebooks
* Electronics games
* Personal communication devices
* Personal Digital Assistants (PDA)
* Portable instrumentation
* Wireless LANs
* Office automation
* Active filters
* ADC/DAC buffer




Pinout

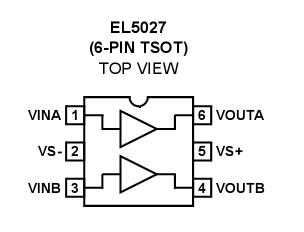

Connection Diagram




Specifications

Supply Voltage between VS + and VS -. . . . . . . . . . . . . . . . .+18V
nput Voltage . . . . . . . . . . . . . . . . . . . . . . .VS - - 0.5V, VS + +0.5V
Maximum Continuous Output Current. . . . . . . . . . . . . . . . . .30mA
Maximum Die Temperature . . . . . . . . . . . . . . . . . . . . . . . +125°C
Storage Temperature. . . . . . . . . . . . . . . . . . . .-65°C to +150°C
Ambient Operating Temperature . . . . . . . . . . . .-40°C to +85°C
Power Dissipation . . . . . . . . . . . . . . . . . . . . . . . . . . . See Curves




Description

The EL5027 is a dual, low power, high voltage rail-to-rail input-output buffer. Operating on supplies ranging from 5V to 15V, while consuming only 110A per channel, the EL5027 has a bandwidth of 2.5MHz -provides rail-to-rail input and output ability, giving the maximum dynamic range at any supply voltage.

The EL5027 also features fast slewing and settling times, as well as a high output drive capability of 30mA (sink and source). These features make the EL5027 ideal for use as voltage reference buffers in Thin Film Transistor Liquid Crystal Displays (TFT-LCD). Other applications include battery power, portable devices, and anywhere low power consumption is important.

The EL5027 is available in space-saving 6-pin TSOT package and operates over a temperature range of -40°C to +85°C.
