EL5123

Features:

• 12MHz -3dB bandwidth
• Supply voltage = 4.5V to 16.5V
• Low supply current (per buffer) = 600A
• High slew rate = 15V/s
• Rail-to-rail input/output swing
• Ultra-small packages
• Pb-free available (RoHS compliant)




Application

• TFT-LCD drive circuits
• Electronics notebooks
• Electronic games
• Touch-screen displays
• Personal communication devices
• Personal digital assistants (PDA)
• Portable instrumentation
• Sampling ADC amplifiers
• Wireless LANs
• Office automation
• Active filters
• ADC/DAC buffers

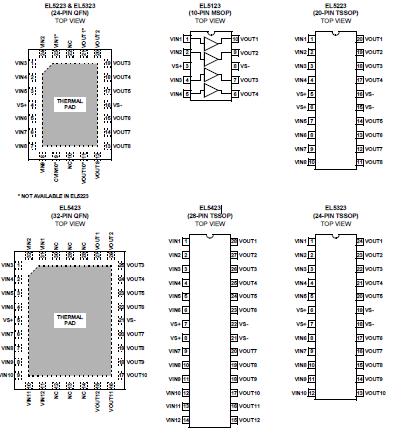

Pinout






Specifications

Supply Voltage between VS+ and VS-. . . . . .+18V
Input Voltage . . . . . . . . . . . . .VS- -0.5V, VS +0.5V
Maximum Continuous Output Current . . . . . 30mA
Maximum Die Temperature . . . . . . . . . . . .+125°C
Storage Temperature . . . . . . . .-65°C to +150°C
Operating Temperature . . . .. . .-40°C to +85°C
Power Dissipation . . . . . . . . . . . . . . . See Curves
ESD Voltage . . . . . . . . . . . .. . . . . . . . . . . . . . 2kV




Description

The EL5123, EL5223, EL5323, and EL5423 are low power, high voltage rail-to-rail input/output buffers designed primarily for use in reference voltage buffering applications for TFT-LCDs. They are available in quad (EL5123), octal (EL5223), 10-Channel (EL5323), and 12-Channel (EL5423) topologies. All buffers feature a -3dB bandwidth of 12MHz and operate from just 600A per buffer. This family also features fast slewing and settling times, as well as a continuous output drive capability of 30mA (sink and source). The quad channel EL5123 is available in the 10 Ld MSOP package. The 8-Channel EL5223 is available in both the 20 Ld TSSOP and 24 Ld QFN packages, the 10-Channel EL5323 in the 24 Ld TSSOP and 24 Ld QFN packages, and the 12-Channel EL5423 in the 28 Ld TSSOP and 32 Ld QFN packages. All buffers are specified for operation over the full -40C to +85C temperature range.

The EL5123,EL5223, EL5323, and EL5423 unity gain buffers are fabricated using a high voltage CMOS process. It exhibits rail-to-rail input and output capability and has low power consumption (600A per buffer).These features make the EL5123, EL5223, EL5323, and EL5423 ideal for a wide range of general-purpose applications. When driving a load of 10k and 12pF, the EL5123, EL5223, EL5323, and EL5423 have a -3dB bandwidth of 12MHz and exhibits 15V/s slew rate.
