EL5191A

Features:

1GHz -3dB bandwidth
9mA supply current
Single and dual supply operation, from 5V to 10V supply span
Fast enable/disable (EL5191A only)
Available in SOT-23 packages
High speed, 600MHz product available (EL5192, EL5292, and EL5392)
Lower power, 300MHz product available (EL5193, EL5293, EL5393)
Pb-Free plus anneal available (RoHS compliant)

Application

Video amplifiers
Cable drivers
RGB amplifiers
Test equipment
nstrumentation
Current to voltage converters

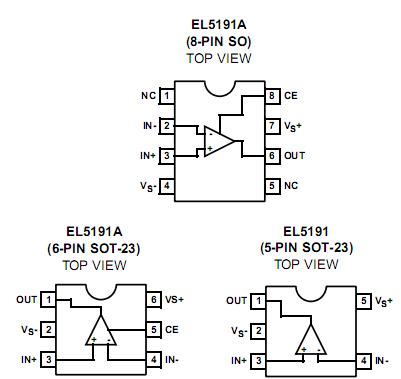

Pinout






Specifications

Supply Voltage between VS+ and VS-. . . . . . . . . . . . . . . . . . . . .11V
Maximum Continuous Output Current . . . . . . . . . . . . . . . . . . . 50mA
Operating Junction Temperature . . . . . . . . . . . . . . . . . . . . . . . 125°C
Power Dissipation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . See Curves

Pin Voltages. . . . . . . . . . . . . . . . . . . . . . . . . VS- -0.5V to VS+ +0.5V
Storage Temperature. . . . . . . . . . . . . . . . . . . . . . . . -65°C to +150°C
Ambient Operating Temperature . . . . . . . . . . . . . . . . -40°C to +85°C

Description

The EL5191 and EL5191A amplifiers are of the current feedback variety and exhibit a very high bandwidth of 1GHz. This makes these amplifiers ideal for todays high speed video and monitor applications, as well as a number of RF and IF frequency designs. With a supply current of just 9mA and the ability to run from a single supply voltage from 5V to 10V, these amplifiers offer very high performance for little power consumption. The EL5191A also incorporates an enable and disable function to reduce the supply current to 100A typical per amplifier. Allowing the CE pin to float or applying a low logic level will enable the amplifier. The EL5191 is offered in the 5 Ld SOT-23 package and the industry-standard 8 Ld SOIC package. EL5191A is available in the industry-standard 8 Ld SOIC package. Both operate over the industrial temperature range of -40C to +85C.
