EL5197A
-
Suppliers
DataSheet
General Description
EL5197A Maximum Ratings
Supply Voltage between VS+ and VS-. . . . . . . . . . . . . . . . . . . . .11V
Maximum Continuous Output Current. . . . . . . . . . . . . . . . . . . 50mA
Operating Junction Temperature. . . . . . . . . . . . . . . . . . . . . .125°C
Power Dissipation . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . See Curves
Pin Voltages. . . . . . . . . . . . . . . . . . . . . . . . . VS- -0.5V to VS+ +0.5V
Storage Temperature. . . . . . . . . . . . . . . . . . . . . .-65°C to +150°C
Operating Ambient Temperature. . . . . . . . . . . . . .-40°C to +85°C
Maximum Continuous Output Current. . . . . . . . . . . . . . . . . . . 50mA
Operating Junction Temperature. . . . . . . . . . . . . . . . . . . . . .125°C
Power Dissipation . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . See Curves
Pin Voltages. . . . . . . . . . . . . . . . . . . . . . . . . VS- -0.5V to VS+ +0.5V
Storage Temperature. . . . . . . . . . . . . . . . . . . . . .-65°C to +150°C
Operating Ambient Temperature. . . . . . . . . . . . . .-40°C to +85°C
EL5197A Features
•Gain selectable (+1, -1, +2)
•200MHz -3dB BW (AV = 1, 2)
•4mA supply current
•Fast enable/disable (EL5197A only)
•Single and dual supply operation, from 5V to 10V or ±2.5V to ±5V
•Available in SOT-23 packages
•Triple (EL5397) available
•400MHz, 9mA products available (EL5197 & EL5396)
•Pb-Free plus anneal available (RoHS compliant)
•200MHz -3dB BW (AV = 1, 2)
•4mA supply current
•Fast enable/disable (EL5197A only)
•Single and dual supply operation, from 5V to 10V or ±2.5V to ±5V
•Available in SOT-23 packages
•Triple (EL5397) available
•400MHz, 9mA products available (EL5197 & EL5396)
•Pb-Free plus anneal available (RoHS compliant)
EL5197A Typical Application
•Battery powered equipment
•Hand held, portable devices
•Video amplifiers
•Cable drivers
•RGB amplifiers
•Test equipment
•Instrumentation
•Current to voltage converters
•Hand held, portable devices
•Video amplifiers
•Cable drivers
•RGB amplifiers
•Test equipment
•Instrumentation
•Current to voltage converters

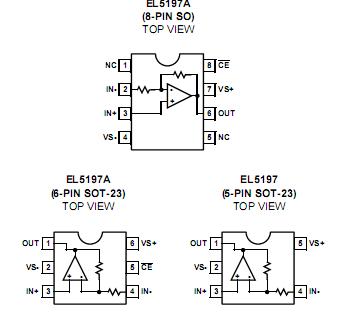

EL5197A Connection Diagram
EL5197A
