Part Number: EL5308









Description: The EL5108 and EL5308 are fixed gain amplifiers with a bandwidth of 450MHz. This makes these amplifiers id...


Urgent Purchase

EL5308 General Description


   The EL5108 and EL5308 are fixed gain amplifiers with a bandwidth of 450MHz. This makes these amplifiers ideal for today's high speed video and monitor applications. They feature internal gain-setting resistors and can be configured in a gain of +1, -1 or +2. The same bandwidth is seen in both gain-of-1 and gain-of-2 applications.

   The EL5108 and EL5308 also incorporate an enable and disable function to reduce the supply current to 25µA typical per amplifier. Allowing the CE pin to float or applying a low logic level will enable the amplifier.

   The EL5108 is offered in the 6-pin SOT-23 and the industrystandard 8-pin SO packages and the EL5308 is available in the 16-pin SO and 16-pin QSOP packages. All operate over the industrial temperature range of -40°C to +85°C.

EL5308 Maximum Ratings

Supply Voltage between VS+ and VS- . . . . . . . . . . . . . . . . . .  13.2V
Maximum Continuous Output Current . . . . . . . . . . . . . . . . . .  50mA
Operating Junction Temperature . . . . . . . . . . . . . . . . . . . . .  125°C
Power Dissipation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . See Curves
Pin Voltages. . . . . . . . . . . . . . . . . . . . . . . . . VS- -0.5V to VS+ +0.5V
Storage Temperature . . . . . . . . . . . . . . . . . . . . . ..-65°C to +150°C
Ambient Operating Temperature . . . . . . . . . . . . . . .-40°C to +85°C

EL5308 Features

• Pb-free Available as an Option
• Gain selectable (+1, -1, +2)
• 450MHz -3dB BW (AV = -1, +1, +2)
• 3.5mA supply current per amplifier
• Single and dual supply operation, from 5V to 12V
• Available in SOT-23 packages
• 350MHz, 1.5mA product available (EL5106 & EL5306)

EL5308 Typical Application

• Battery powered equipment
• Handheld, portable devices
• Video amplifiers
• Cable drivers
• RGB amplifiers

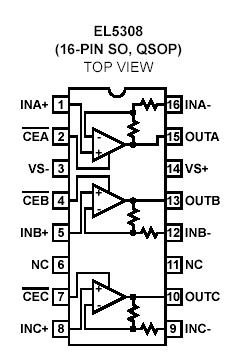

EL5308 Connection Diagram

EL5308 Connection Diagram
