Part Number: EL5324
Description: The EL5224, EL5324, and EL5424 feature 8, 10, and 12 low power buffers, respectively, and one high power output ...
- Table of contents:
EL5324
-
Suppliers
DataSheet
General Description
EL5324 General Description
The EL5224, EL5324, and EL5424 feature 8, 10, and 12 low power buffers, respectively, and one high power output amplifier. They are designed primarily for buffering column driver reference voltages in TFT-LCD applications as well as generation of the V supply. Each low power buffer COM features a -3dB bandwidth of 12MHz and features rail-to-rail input/output capability. The high power buffer can drive 100mA and swings to within 2V of each rail.
The 8-channel EL5224 is available in 24-pin QFN and 24-pin HTSSOP packages, the 10-channel EL5324 is available in 32-pin QFN and 28-pin HTSSOP packages, and the 12-channel EL5434 is available in the 32-pin QFNQFN package. They are specified for operation over the full -40!aC to +85!aC temperature range
EL5324 Maximum Ratings
Supply Voltage between VS+ and VS -. . . . . . . . . . . . . . .+18V
Input Voltage . . . . . . . . . . . . . . . . . . .. .VS- -0.5V, VS + +0.5V
Maximum Continuous Output Current (VOUT0-9) . . . . . . .30mA
Maximum Continuous Output Current (VOUTA). . . . . . . .150mA
Power Dissipation . . . . . . . . . . . . . . . . . . . . . . . . . See Curves
Maximum Die Temperature . . . . . . . . . . . . . . .. . . . . . . .+125
Storage Temperature. . . . . . . . . . . . . . . . . . . . .-65 to +150
Ambient Operating Temperature . . . . . . . . . . .. .-40 to +85
Input Voltage . . . . . . . . . . . . . . . . . . .. .VS- -0.5V, VS + +0.5V
Maximum Continuous Output Current (VOUT0-9) . . . . . . .30mA
Maximum Continuous Output Current (VOUTA). . . . . . . .150mA
Power Dissipation . . . . . . . . . . . . . . . . . . . . . . . . . See Curves
Maximum Die Temperature . . . . . . . . . . . . . . .. . . . . . . .+125
Storage Temperature. . . . . . . . . . . . . . . . . . . . .-65 to +150
Ambient Operating Temperature . . . . . . . . . . .. .-40 to +85
EL5324 Features
8, 10, and 12 channel versions
12MHz -3dB buffer bandwidth
150mA VCOM buffer
Operating supply voltage from 4.5V to 16.5V
Low supply current - 6mA total (8-channel version)
Rail-to-rail input/output swing (buffers only)
QFN package - just 0.9mm high
Pb-Free available (RoHS compliant)
12MHz -3dB buffer bandwidth
150mA VCOM buffer
Operating supply voltage from 4.5V to 16.5V
Low supply current - 6mA total (8-channel version)
Rail-to-rail input/output swing (buffers only)
QFN package - just 0.9mm high
Pb-Free available (RoHS compliant)
EL5324 Typical Application
TFT-LCD column driver buffering and VCOM supply
Electronics notebooks
Computer monitors
Electronics games
Touch-screen displays
Portable instrumentation
Electronics notebooks
Computer monitors
Electronics games
Touch-screen displays
Portable instrumentation

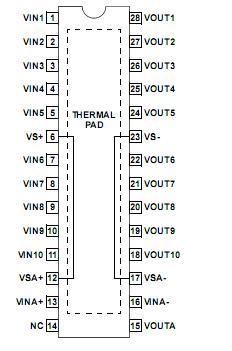

EL5324 Connection Diagram
EL5324
