EL5397A

Features:

•Gain selectable (+1, -1, +2)
•200MHz -3dB bandwidth (A_V = 1, 2)
•4mA supply current (per amplifier)
•Single and dual supply operation, from 5V to 10V or ±2.5V to ±5V
•Fast enable/disable
•Available in 16-pin QSOP package
•Single (EL5197) available
•400MHz, 9mA products available (EL5196 & EL5396)




Application

•Battery-powered equipment
•Hand-held, portable devices
•Video amplifiers
•Cable drivers
•RGB amplifiers
•Test equipment
•Instrumentation
•Current to voltage converters

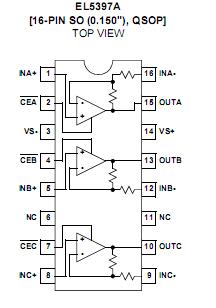

Pinout






Specifications

Supply Voltage between V_S+ and V_S-. . . . . . . . . . . . . . . . . . . . .11V
Maximum Continuous Output Current. . . . . . . . . . . . . . . . . . . 50mA
Operating Junction Temperature . . . . . . . . . . . . . . . . . . . . . .125°C
Power Dissipation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . See Curves
Pin Voltages. . . . . . . . . . . . . . . . . . . . . . . . . V_{S- -}0.5V to V_S+ +0.5V
Storage Temperature. . . . . . . . . . . . . . . . . . . . . .-65°C to +150°C
Operating Temperature . . . . . . . . . . . . . . . . . . . .. .-40°C to +85°C




Description

The EL5397A is a triple channel, fixed gain amplifier with a bandwidth of 200MHz, making these amplifiers ideal for todays high speed video and monitor applications. The EL5397A features internal gain setting resistors and can be configured in a gain of +1, -1 or +2. The same bandwidth is seen in both gain-of-1 and gain-of-2 applications. With a supply current of just 4mA per amplifier and the ability to run from a single supply voltage from 5V to 10V, these amplifiers are also ideal for hand held, portable or battery powered equipment. The EL5397A also incorporates an enable and disable function to reduce the supply current to 100A typical per amplifier. Allowing the CE pin to float or applying a low logic level will enable the amplifier. For applications where board space is critical, the EL5397A is offered in the 16-pin QSOP package, as well as a 16-pin SO (0.150"). The EL5397A is specified for operation over the full industrial temperature range of -40C to +85C.
