Part Number: EL6201C
Description: The EL6201C is a solid state high performance laser modulation oscillator with external resistor adjust...
- Table of contents:
EL6201C
-
Suppliers
DataSheet
General Description
EL6201C General Description
The EL6201C is a solid state high performance laser modulation oscillator with external resistor adjustable frequency and amplitude. The EL6201C is available in both the 8-pin MSOP and the 5-pin SOT23, to enable device placement close to the laser for reduced EMI.
The oscillator frequency is set by connecting a single external resistor from the RFREQ pin to ground. The oscillator current output amplitude is set by connecting a single external resistor from the RAMP pin to ground. The oscillator in the MSOP package also contains a high speed output disable function using the oE pin. The OE pin can be driven by a high speed timing signal to control precise laser modulation during read/write operations. The output current is disabled when a logical zero 'L' is driven to the CE pin. Supply current is reduced to microamps when CE = LOW.
The EL6201C has internal supply bypass capacitors to reduce oscillation noise spread through supply connections.
EL6201C Features
• Small SOT-23 and MSOP-8 packages
• Frequency to 430MHz min.
• Amplitude to 25mAP-P min.
• Output tristate function (MSOP-8)
• Power-down function (MSOP-8)
• Single +3.5V to +5.0V supply
• Simple to use - only two external resistors required
• Independent resistor setting for frequency and amplitude.
• Frequency to 430MHz min.
• Amplitude to 25mAP-P min.
• Output tristate function (MSOP-8)
• Power-down function (MSOP-8)
• Single +3.5V to +5.0V supply
• Simple to use - only two external resistors required
• Independent resistor setting for frequency and amplitude.
EL6201C Typical Application
• DVD players
• DVD-ROM drives
• DVD-RAM drives
• CD-RW drives
• MO drives
• Optical pickup head assembly
• Laser diode modulation
• Local oscillator
• Communications lasers
• DVD-ROM drives
• DVD-RAM drives
• CD-RW drives
• MO drives
• Optical pickup head assembly
• Laser diode modulation
• Local oscillator
• Communications lasers

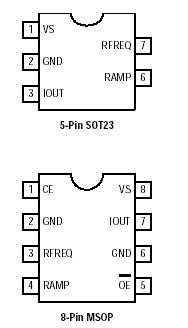

EL6201C Connection Diagram
EL6201C
