General Description
EL7512 General Description
The EL7512 is a high frequency, high efficiency step-up DC:DC regulator operated at fixed frequency PWM mode.With an integrated 1A MOSFET, it can deliver up to 600mA output current at up to 90% efficiency. The adjustable switching frequency is up to 1.2MHz, making it ideal for DSL applications.
When shut down, it draws <3µA of current. This feature,along with the minimum starting voltage of 2V, makes it suitable for portable equipment powered by one lithium ion or 3 to 4 NiMH cells.
The EL7512 is available in a 10-pin MSOP package, with maximum height of 1.1mm. With proper external components, the whole converter takes less than 0.25in2 PCB space.
This device is specified for operation over the full -40°C to +85°C temperature range.
EL7512 Maximum Ratings
EN, LBI, . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .+18V
LX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20V
VDD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12V
Storage Temperature . . . . . . . . . . . . . . . . . . . . . . . . -65°C to +150°C
Operating Temperature . . . . . . . . . . . . . . . . . . . . . . .-40°C to +85°C
Operating Junction Temperature:. . . . . . . . . . . . . . . . . . . . . . . 135°C
LX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20V
VDD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12V
Storage Temperature . . . . . . . . . . . . . . . . . . . . . . . . -65°C to +150°C
Operating Temperature . . . . . . . . . . . . . . . . . . . . . . .-40°C to +85°C
Operating Junction Temperature:. . . . . . . . . . . . . . . . . . . . . . . 135°C
EL7512 Features
• 90% efficiency
• Up to 600mA IOUT
• 5V < VOUT < 18V
• VIN > 2V
• Up to 1.2MHz adjustable frequency
• < 3µA shutdown current
• Adjustable soft-start
• Low battery detection
• Internal thermal protection
• 1.1mm max height 10-pin MSOP package
• Pb-Free available (RoHS compliant)
• Up to 600mA IOUT
• 5V < VOUT < 18V
• VIN > 2V
• Up to 1.2MHz adjustable frequency
• < 3µA shutdown current
• Adjustable soft-start
• Low battery detection
• Internal thermal protection
• 1.1mm max height 10-pin MSOP package
• Pb-Free available (RoHS compliant)
EL7512 Typical Application
• 3V to 5V, 12V, and 18V converters
• 5V to 12V and 16V converters
• TFT-LCD
• DSL
• Portable equipment
• Desktop equipment
• 5V to 12V and 16V converters
• TFT-LCD
• DSL
• Portable equipment
• Desktop equipment

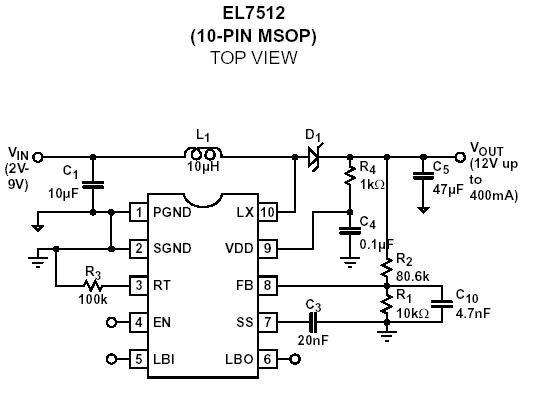

EL7512 Connection Diagram
EL7512
