Position: Home  > All Categories> Integrated Circuits (ICs) > EM1050-38

EM1050-38

MIC OMNI DIRECT 10X5.0MM -38DB

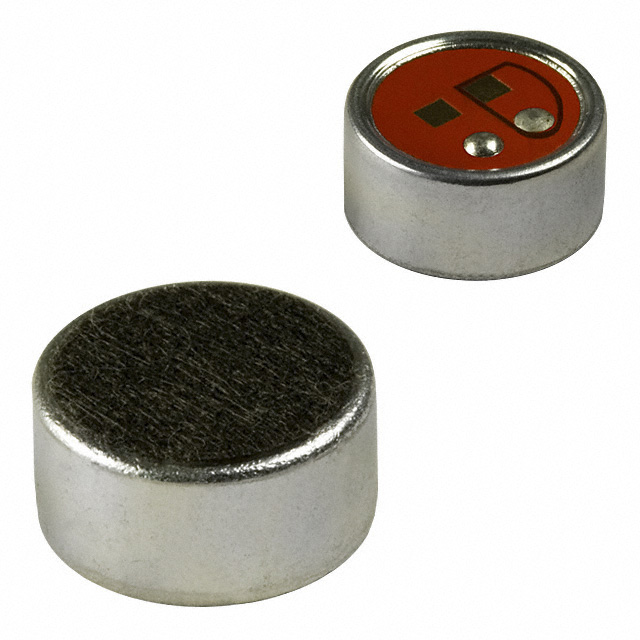

product image

EM1050-38 Picture
See larger image
SeekIC No. : 002845678 Detail

EM1050-38: MIC OMNI DIRECT 10X5.0MM -38DB

EM1050-38 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
EM1050-38
Mfg:
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Series: - Manufacturer: Horn Industrial Co LTD
Type: Electret Condenser Output Type: Analog
Direction: Omnidirectional Operating Supply Voltage : 2.6 V to 3.6 V
Frequency Range: - Sensitivity: -38dB ±2dB
S/N Ratio: 60dB Impedance: 2.2 kOhm
Voltage - Rated: - Current - Supply: 500µA
Port Location: Top Seal Rating: None
Termination: Solder Pads Size / Dimension: 10.00mm Dia
Height (Max): 5.00mm Shape: Circular

Description

Series: -
Type: Electret Condenser
Output Type: Analog
Direction: Omnidirectional
S/N Ratio: 60dB
Impedance: 2.2 kOhm
Current - Supply: 500µA
Port Location: Top
Seal Rating: None
Shape: Circular
Packaging: Bulk
Termination: Solder Pads
Height (Max): 5.00mm
Frequency Range: -
Voltage - Rated: -
Manufacturer: Horn Industrial Co LTD
Size / Dimension: 10.00mm Dia
Sensitivity: -38dB ±2dB


Parameters:

Technical/Catalog InformationEM1050-38
VendorHorn Industrial Co LTD
CategoryAudio Products
Sensitivity-38dB ±2dB
Voltage - Rated 4.5V
Current 500A
TypeElectret Condenser
Size / DimensionCircular - 10mm Dia x 5mm H
Frequency38Hz ~ 16kHz
S/N Ratio60dB
Filter Type-
Impedance2.2K Ohm
TerminationSolder Pads
DirectionOmnidirectional
Port LocationTop
Lead Free StatusContains Lead
RoHS StatusRoHS Non-Compliant
Other Names EM1050 38
EM105038
359 1026 ND
3591026ND
359-1026
