EM620FV8BS

Features: · Process Technology : 0.15mm Full CMOS· Organization :256K x8· Power Supply Voltage => EM620FV8BS Series : 2.7V~3.6V· Low Data Retention Voltage : 1.5V (MIN)· Three state output and TTL Compatible· Packaged product designed for 45/55/70ns· Package Type: 32-sTSOP1PinoutSpecifications ...

product image

EM620FV8BS Picture
See larger image
SeekIC No. : 004335975 Detail

EM620FV8BS: Features: · Process Technology : 0.15mm Full CMOS· Organization :256K x8· Power Supply Voltage => EM620FV8BS Series : 2.7V~3.6V· Low Data Retention Voltage : 1.5V (MIN)· Three state output and TT...

EM620FV8BS Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
EM620FV8BS
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/1

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·  Process Technology : 0.15mm Full CMOS
·  Organization :256K x8
·  Power Supply Voltage
     => EM620FV8BS Series : 2.7V~3.6V
· Low Data Retention Voltage : 1.5V (MIN)
·  Three state output and TTL Compatible
·  Packaged product designed for 45/55/70ns
·  Package Type: 32-sTSOP1


Pinout

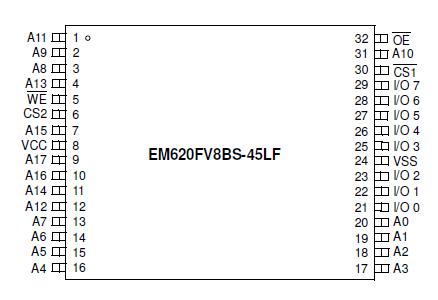

Connection Diagram


Specifications

Parameter
Symbol
Minimum
Unit
Voltage on Any Pin Relative to Vss
VIN,VOUT
-0.2 to 4.0V
V
Voltage on Vcc supply relative to Vss
VCC
-0.2 to 4.0V
V
Power Dissipation
PD
1.0
W
Operating Temperature
TA
-40 to 85
* Stresses greater than those listed above "Absolute Maximum Ratings" may cause permanent damage to the device. Functional operation should be restricted to recommended operating condition. Exposure to absolute maximum rating conditions for extended periods may affect reliability.


Description

The EM620FV8BS series are fabricated by EMLSI's advanced full CMOS process technology. The families support industrial temperature range and Chip Scale Package for user flexibility of system design. The families also supports low data retention voltage for battery back-up operation with low data retention current.

The EM620FV8BS series are available in KGD, JEDEC standard 32 pin 8mm x 13.4mm sTSOP package.
