Features: ` 200ms reset timeout period (25ms on request)
` Ultra-low supply current of 2.9A (VDD=3.3V)
` Operating temperature range: -40°C to +125°C
` ±1.5% reset threshold accuracy
` 11 reset threshold voltages VTH: 4.63V, 4.4V, 3.08V, 2.93V, 2.63V, 2.2V, 1.8V, 1.66V, 1.57V, 1.38V, 1.31V
` 3 reset output options:
Active-lowRESET push-pull
Active-lowRESET open-drain
Active-highRESET push-pull
` No external components
` Immune to short negative VDD transients
` Guaranteed Reset valid down to 0.8V
` Threshold hysteresis: 2.1% of VTH
` Very small SOT23-3L and SC70-5L packages
Application· Mobile phones
· Set-top boxes
· Video, digital cameras, DVD players and recorders
· Modems
· Personal computers
· Switching hubs
· Copiers and fax
· Utility meters
· Automotive systems

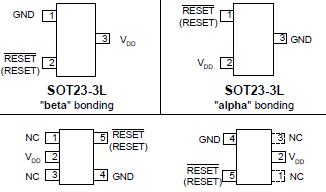

Pinout
Specifications
|
Parameter |
Symbol |
Conditions |
| Voltage at VDD to GND |
VDD |
-0.3V to +6V |
| Minimum voltage at any signal pin |
VMIN |
GND - 0.3V |
| Maximum voltage at any signal pin |
VMAX |
VDD + 0.3V |
Electrostatic discharge maximum to
MIL-STD-883C method 3015 |
VESD |
2000V |
| Max. soldering conditions |
TMAX |
250°C x 10s |
| Storage Temperature Range |
TSTG |
-65°C to +150°C |
DescriptionThe EM6353 is an ultra-low current supervisory circuit with a timeout reset period at power-on. As such it monitors the supply voltage of any electronic system, and generates the appropriate reset signal. The threshold defines the minimum allowed voltage which guarantees the good functionality of the system. As long as VDD stays above the threshold voltage, the output stays inactive. If VDD drops below VTH, the output gets active.
The EM6353 asserts a reset signal with a delay time of 200ms (typ).
There are 11 standard threshold voltages between 1.31V and 4.63V for use with a wide range of power supplies.
The EM6353 features three output types: active-low push-pull, active-low open-drain and active-high push-pull. The output is guaranteed to be in the correct state for VDD down to 0.8V.
The EM6353 is available in SOT23-3L and SC70-5L packages, and has an operating temperature range from -40°C to +125°C.
|
EM6353 Data Sheet
