Product Details

Description



Features:

·Operation voltage:1.2V to 1.8V.(clock frequency : 32 K Hz)
·Clock source:Single clock system for crystal, connect a external resistor or external clock source, available by mask option.
·Instruction set:109 powerful instructions.
·Instruction cycle time:Up to 122|ìs for 32 K Hz
·ROM capacity:3072 x 8 bits.
·RAM capacity:52 x 4 bits.
·Input port:1 port (4-bit).
·Bidirection port:4 ports (P4, P6, P7, P8) are available by mask option. P4 is a high current port. (P4.0 and TONE available by mask option. P4.1~P4.3 are shared with the input/ output of RFO.) P6, P7 and P8 are shared with SEG15-SEG26.
·12-bit timer:One 12-bit timer is programmable for timer.
·High speed counter:The high speed counter includes one 8-bit high speed counter, one 12-bit general counter and a resistor frequency oscillator. It has resistor to frequency oscillation mode, melody mode and auto load timer mode.
·Built-in time base counter:22 stages.
·Subrountine nesting:Up to 13 levels.
·Interrupt:External interrupt . . . . . .2 input interrupt sources.
Internal interrupt . . . . . .2 timer overflow interrupts,
1 time base interrupt.
· LCD driver: 27x3 to 15x3 dots available by mask option. 1/3, 1/2 and static three kinds of duty (1/2 bias) selectable. The programming method of LCD driver is RAM mapping.
·Built-in watch-dog-timer is available by mask option.
·Built-in low battery detector.
·Power saving function:STOP mode and IDLE mode.
·Package type: Chip form 49 pins.

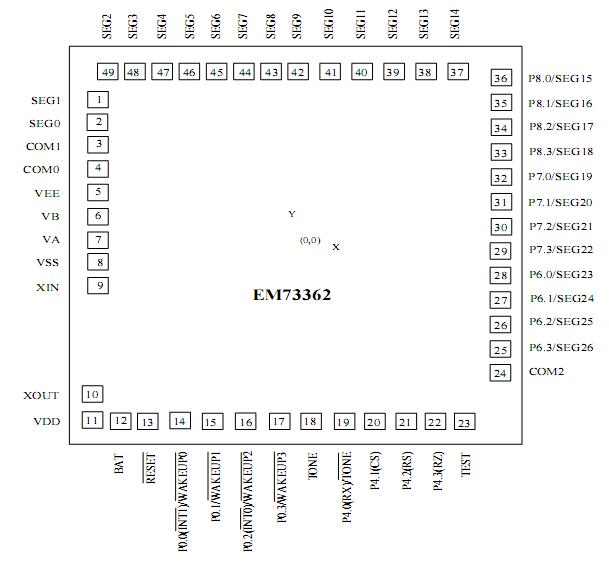

Pinout

Connection Diagram


Description

EM73362 is an advanced single chip CMOS 4-bit micro-controller. It contains 3K-byte ROM, 52-nibble RAM, 4-bit ALU, 13-level subroutine nesting, 22-stage time base, one 12-bit timer for the kernal function and one high speed counter. EM73362 also contains 5 interrupt sources, 1 input port, 4 bidirection ports, built-in watch- dog-timer and LCD driver (27x3 to 15x3).

Except low-power consumption and high speed, EM73362 has the STOP mode and IDLE mode operation for power saving function.
