EM78860

Features: CPU• Operating voltage range : 2.5V~5.5V• 16Kx13 on chip ROM• 2.8Kx8 on chip RAM• Up to 32 bi-directional tri-state I/O ports• 8 Level stack for subroutine nesting• 8-bit real time clock/counter (TCC)• Two sets of 8 bit counters can be interrupt ...

product image

EM78860 Picture
See larger image
SeekIC No. : 004336061 Detail

EM78860: Features: CPU• Operating voltage range : 2.5V~5.5V• 16Kx13 on chip ROM• 2.8Kx8 on chip RAM• Up to 32 bi-directional tri-state I/O ports• 8 Level stack for subroutine ne...

EM78860 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
EM78860
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/6

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

CPU
• Operating voltage range : 2.5V~5.5V
• 16Kx13 on chip ROM
• 2.8Kx8 on chip RAM
• Up to 32 bi-directional tri-state I/O ports
• 8 Level stack for subroutine nesting
• 8-bit real time clock/counter (TCC)
• Two sets of 8 bit counters can be interrupt sources
• Selective signal sources and with overflow interrupt
• Programmable free running on chip watchdog timer
• 99.9% single instruction cycle commands
• Four modes (internal clock 3.679MHz, external 32.768KHz)
  1. Sleep mode : CPU and 3.679MHz clock turn off, 32.768KHz clock turn off
  2. Idle mode : CPU and 3.679MHz clock turn off, 32.768KHz clock turn on
  3. Green mode : 3.679MHz clock turn off, CPU and 32.768KHz clock turn on
  4. Normal mode : 3.679MHz clock turn on , CPU and 32.768KHz clock turn on
• Low battery detector
• Input port wake up function
• 8 interrupt source , 4 external , 3 internal
• 100 pin QFP or chip
• Port key scan function
• Port interrupt , pull high and open drain functions
• Clock frequency 32.768KHz externally
LCD
• LCD operation voltage chosen by software
• Common driver pins : 16
• Segment driver pins : 60
• 1/4 bias
• 1/8,1/16 duty


Application

1. adjunct units
2. data bank


Pinout

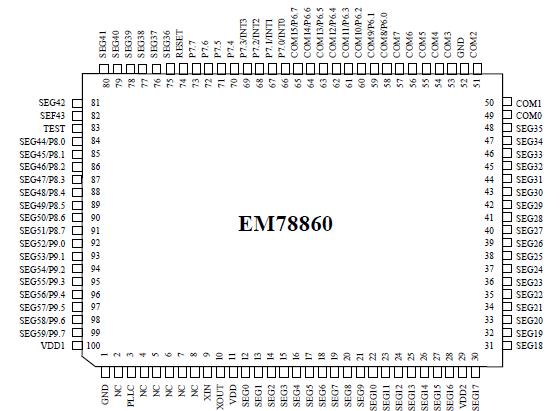

Connection Diagram


Specifications

Item
Symbol
Rating
Unit
Temperature under bias
VDD
-0.3 to 6
V
Input voltage
VIN
- 0.5 to VDD+ 0.5
V
Operating temperature range
TA
0 to 70



Description

The EM78860 is an 8-bit RISC type microprocessor with low power , high speed CMOS technology . Integrated onto a single chip are on_chip watchdog (WDT) , RAM , ROM , programmable real time clock / counter , internal interrupt , power down mode , LCD driver and tri-state I/O . The EM78860 provides a single chip solution to design a message display .
