General Description
EM78P418 General Description
EM78P417/8/9N is 8-bit microprocessors designed and developed with low-power and high-speed CMOS technology. It is equipped with a 4K*13-bit Electrical One Time Programmable Read Only Memory (OTP-ROM). With its OTP-ROM feature, it is able to offer a convenient way of developing and verifying your programs. Moreover, it provides a protect bit to guard against code intrusion, as well as 3 Code Option words to accommodate your requirements. Furthermore you can take advantage of ELAN Writer to easily write your development code into the EM78P417/8/9N.
EM78P418 Maximum Ratings
Temperature under bias -40 to 85
Storage temperature -65 to 150
Input voltage Vss-0.3V to Vdd+0.5V
Output voltage Vss-0.3V to Vdd+0.5V
Working Voltage 2.5V to 5.5V
Working Frequency DC to 20MHz
Storage temperature -65 to 150
Input voltage Vss-0.3V to Vdd+0.5V
Output voltage Vss-0.3V to Vdd+0.5V
Working Voltage 2.5V to 5.5V
Working Frequency DC to 20MHz
EM78P418 Features
Operating voltage range: 2.3V~5.5V base on 0°C ~ 70°C (commercial) 2.5V~5.5V base on 40°C ~ 85°C (industrial)
Operating frequency range (base on 2 clocks):
• Crystal mode: DC ~ 20MHz/2clks, 5V; DC ~ 8MHz/2clks, 3V
• RC mode: DC ~ 4MHz/2clks, 5V; DC ~ 4MHz/2clks, 3V
Low power consumption:
• Less than 2.2 mA at 5V/4MHz
• Typically 15 µA, at 3V/32KHz
• Typically 1 µA, during sleep mode
4K * 13 bits on chip ROM
144 * 8 bits on chip registers (SRAM)
3 bi-directional I/O ports
8 level stacks for subroutine nesting
8-bit real time clock/counter (TCC) with selective signal sources, trigger edges, and overflow interrupt
8-bit multi-channel Analog-to-Digital Converter with 12-bit resolution
Three Pulse Width Modulation (PWM ) with 10-bit resolution
One pair of comparators (can be set to act as an OP)
Power-down (SLEEP) mode
Six available interruptions:
• TCC overflow interrupt
• Input-port status changed interrupt (wake-up from sleep mode)
• External interrupt
• ADC completion interrupt
• PWM time period match completion interrupt
• Comparator high/low interrupt
Programmable free running watchdog timer
8 Programmable pull-down I/O pins
8 programmable pull-high I/O pins
8 programmable open-drain I/O pins
Two clocks per instruction cycle
Package types:
• 18 pin DIP 300mil : EM78P417NP
• 18 pin SOP 300mil : EM78P417NM
• 20 pin DIP 300mil : EM78P418NP
• 20 pin SOP 300mil : EM78P418NM
• 24 pin skinny DIP 300mil : EM78P419NK
• 24 pin SOP 300mil : EM78P419NM
Power on voltage detector provided (2.0V± 0.1V)
Operating frequency range (base on 2 clocks):
• Crystal mode: DC ~ 20MHz/2clks, 5V; DC ~ 8MHz/2clks, 3V
• RC mode: DC ~ 4MHz/2clks, 5V; DC ~ 4MHz/2clks, 3V
Low power consumption:
• Less than 2.2 mA at 5V/4MHz
• Typically 15 µA, at 3V/32KHz
• Typically 1 µA, during sleep mode
4K * 13 bits on chip ROM
144 * 8 bits on chip registers (SRAM)
3 bi-directional I/O ports
8 level stacks for subroutine nesting
8-bit real time clock/counter (TCC) with selective signal sources, trigger edges, and overflow interrupt
8-bit multi-channel Analog-to-Digital Converter with 12-bit resolution
Three Pulse Width Modulation (PWM ) with 10-bit resolution
One pair of comparators (can be set to act as an OP)
Power-down (SLEEP) mode
Six available interruptions:
• TCC overflow interrupt
• Input-port status changed interrupt (wake-up from sleep mode)
• External interrupt
• ADC completion interrupt
• PWM time period match completion interrupt
• Comparator high/low interrupt
Programmable free running watchdog timer
8 Programmable pull-down I/O pins
8 programmable pull-high I/O pins
8 programmable open-drain I/O pins
Two clocks per instruction cycle
Package types:
• 18 pin DIP 300mil : EM78P417NP
• 18 pin SOP 300mil : EM78P417NM
• 20 pin DIP 300mil : EM78P418NP
• 20 pin SOP 300mil : EM78P418NM
• 24 pin skinny DIP 300mil : EM78P419NK
• 24 pin SOP 300mil : EM78P419NM
Power on voltage detector provided (2.0V± 0.1V)

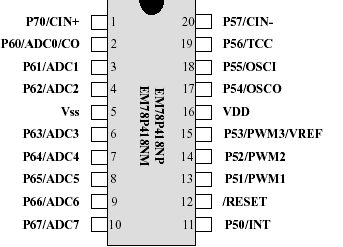

EM78P418 Connection Diagram
EM78P418N
PDF/DataSheet Download
- Datasheet: EM78P418N
- File Size: 1932607 KB
- Manufacturer: EMC [ELAN Microelectronics Corp]
- Click here to Download
