EM83053DH

Features:

Low cost - eliminate need external components.
Phantom key detects.
RC oscillator ( 1.8432MHz ).
Support scan code set 1 ,2 and 3.
Support PC AT and PS/2 keyboard .
Low power CMOS device technology.
Internal pull-up resistor.
Tri-state outputs for easy board application.
Built-in 4K ROM.
Support WINDOWS _TM 95, 98, 2000, ME keys.
104/107 keys with multi-media or other special application keyboard encoder.
WINDOWS is registered trademarks of Microsoft corporation.


Application

IBM PC AT or compatible machine keyboard.
IBM PS/2 model 30,50,60,80 or compatible machine keyboard.
Japanese keyboard.
Korean keyboard.
Brazilian keyboard.
European keyboard.

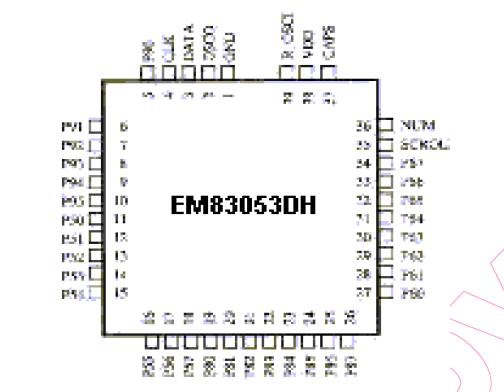

Pinout




Specifications

Parameter	Sym.	Ratings
Supply Voltage	VCC	-0.5V to +7V
Input Voltage	VIN	-0.3V to +6V
Output Voltage	VOUT	-0.3V to +6V
Temperature under bias	TB	0 to 7
Storage temperature	TS	-6 to 15

Description

The EM83053DH microcontroller is dedicated to a keyboard encoder ,specially designed for IBM PC AT and all compatible machines. The EM83053DH controll all scan codes, three LEDs status, scan timing and communications between the keyboard and PC. It is easy to implement a high performance, low cost keyboard with the minimal external components.
