EN5311QI

Output Power :
Mounting Style : SMD/SMT
Packaging : Reel
Operating Temperature Range : - 40 C to + 85 C
Output Current : 1 A
Switching Frequency : 4 MHz
Package / Case : QFN-20
Output Voltage : 0.6 V to 5 V
Input Voltage : 2.4 V to 6.6 V


Features:

Product Highlights

• Tiny Footprint
• Simple Layout, Easy Design
• Low Part Count
• Excellent Transient Response
• Integrated Inductor
• 1 A continuous output current
• 2.4 V to 5.5 V input range
• Up to 95% peak efficiency
• Excellent transient response, low ripple
• Requires only two MLC filter capacitors (0805)
• 3-pin VID output voltage programming
• 4 mm x 5 mm x 1.1 mm QFN package
• Fully RoHS compliant and Pb-free manufacturing line

Application

This product is an excellent choice for low-power mobile applications such as smart-phone, personal media player or PDAs


Pinout

Specifications

1 A continuous output current

2.4 V to 5.5 V input range

Up to 95% peak efficiency

Excellent transient response, low ripple

Requires only two MLC filter capacitors (0805)

3-pin VID output voltage programming

4 mm x 5 mm x 1.1 mm QFN package

Description

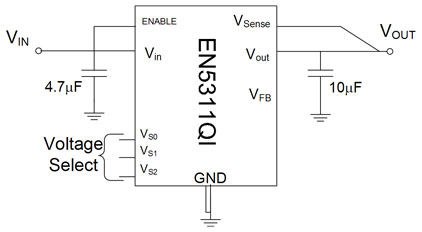

The Enpirion EN5311QI represents a revolution in low-power switching converters. The total solution footprint is 38mm2, without compromising efficiency. Requiring two external components, the EN5311QI makes regulator design a breeze.

A complete power system-on-a-chip (PowerSoC), the EN5311QI integrates power switches, Inductor, gate drive, controller, and loop compensation in a tiny 5 mm x 4 mm package. The 1.1mm profile and small footprint enables the use of this part where space is at a premium.

The EN5311QI utilizes a 3-pin VID output voltage selector that allows the designer to choose one of seven pre-defined output voltage levels; or an external voltage divider can be employed to set the output voltage.
